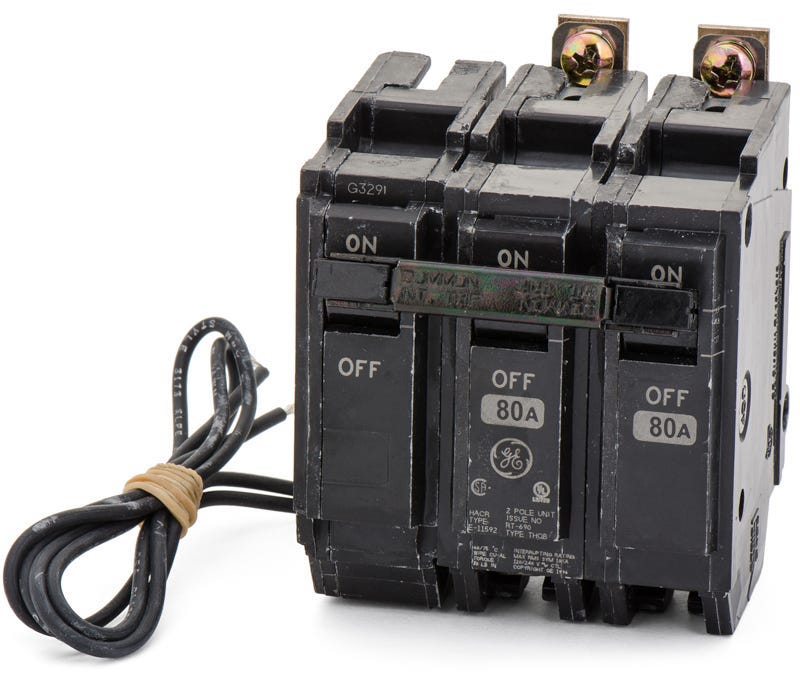

ABB / General Electric THQB2180ST1 Miniature Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2180ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2180ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2180ST1 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB21100ST1
100A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2160ST1
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2150ST1
50A 2 Pole Miniature Circuit Breaker
Description
Part of the GE Q-Line family, the THQB2180ST1 is a two-pole, 80A miniature circuit breaker featuring a factory-installed 120VAC shunt trip for remote operation. It is built for commercial and industrial power distribution. This unit bolts securely into GE AQ lighting panels and A-Series panelboards, providing a vibration-resistant connection to the busbar. Rated at 10kAIC, it delivers reliable thermal-magnetic protection and is HACR rated for use with heating and cooling equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2180ST1 |
| Series | THQB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards accept the THQB2180ST1 circuit breaker?
This breaker is designed specifically for GE AQ Lighting Panels and GE A-Series Panelboards. It will not fit standard plug-on load centers, as it requires a threaded busbar for its bolt-on connection.
What does the ST1 suffix mean on the THQB2180ST1 catalog number?
The ST1 suffix indicates the breaker is equipped with a factory-installed 120VAC shunt trip. This accessory allows the breaker to be opened remotely via a control signal, which is often required for emergency shutdown systems.
What are the acceptable wire sizes for the THQB2180ST1 terminals?
The box lugs accept 6 AWG to 1/0 AWG copper conductors, or 4 AWG to 1/0 AWG aluminum conductors. Always verify your wire size meets local electrical codes for an 80-amp circuit.
Is the THQB2180ST1 manufactured by ABB or General Electric?
ABB acquired GE Industrial Solutions in 2018. Because the Q-Line series continued under the same catalog numbers, you may receive a breaker branded as either ABB or GE. Both are identical in form, fit, and function.
How does the thermal-magnetic trip unit operate on the THQB2180ST1?
The breaker uses a fixed Long-Time and Instantaneous (LI) trip mechanism. The thermal element provides a delayed trip for sustained overloads, while the magnetic element trips instantaneously in the event of a short circuit.
Can I use the THQB2180ST1 in a standard GE residential load center?
No. The THQB series features a bolt-on mounting style intended for commercial panelboards. For standard GE residential plug-on load centers, you would need a THQL series breaker instead.
Does the THQB2180ST1 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker. It does not include Ground Fault Equipment Protection (GFEP), Ground Fault Circuit Interrupter (GFCI), or Arc Fault Circuit Interrupter (AFCI) functions.
