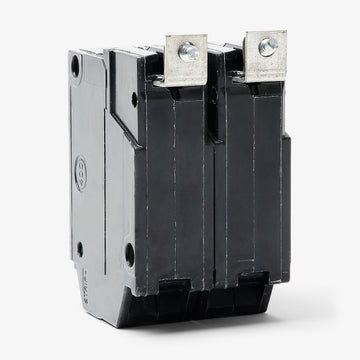

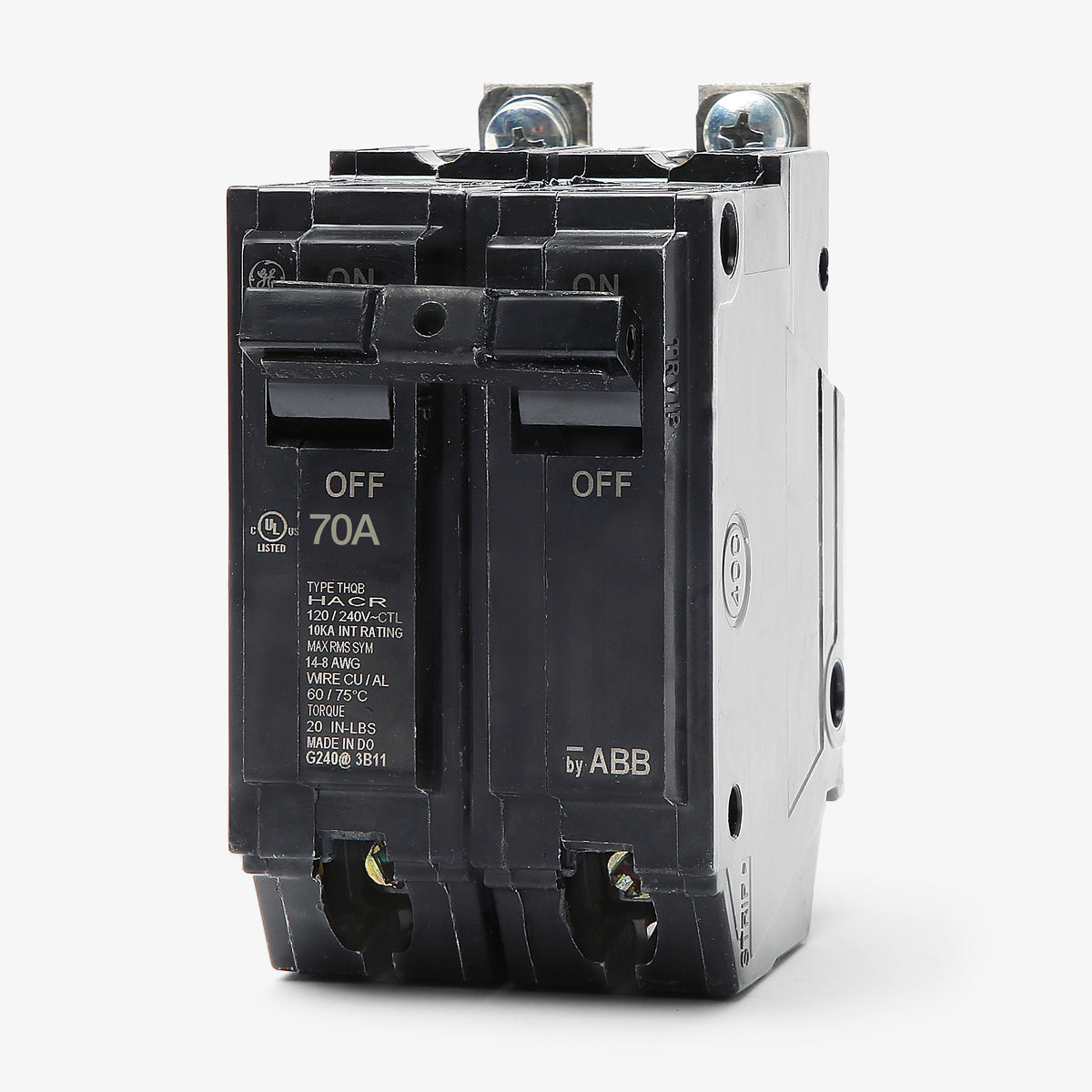

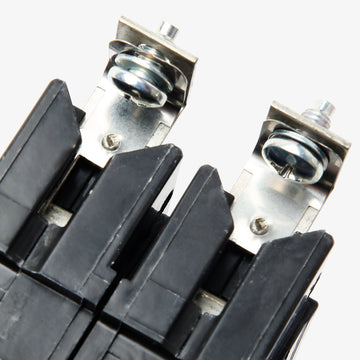

ABB / General Electric THQB2170 Miniature Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2170
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2170
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2170 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2170 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2170 |
| Series | THQB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQB2170 - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2170-R |
| Series | THQB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHQB2180ST1
80A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2160ST1
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2190
90A 2 Pole Miniature Circuit Breaker
Description
Fastening firmly into GE A-Series panelboards, this 70-amp bolt-on breaker ensures stable connections in commercial and industrial environments. The two-pole Q-Line model utilizes standard thermal-magnetic trip technology with a 10kA interrupting capacity at 120/240VAC. It features an internal common trip mechanism and is HACR certified for use with heating, ventilation, and air conditioning equipment. Box lug terminals accommodate 6-1/0 AWG copper or 4-1/0 AWG aluminum conductors.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2170 |
| Series | THQB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the THQB2170 circuit breaker?
The THQB2170 is designed exclusively for use in GE A-Series panelboards, specifically AQ lighting and distribution panels. It utilizes a bolt-on connection and will not fit in standard residential load centers that require plug-in breakers.
What is the difference between the GE THQB2170 and the THHQB2170?
Both are 70A, 2-pole, bolt-on circuit breakers for GE A-Series panels. The difference is their interrupting capacity. The THQB2170 has a 10kAIC rating, while the THHQB2170 features a higher 22kAIC rating.
Can I substitute a THQL breaker for a THQB breaker?
No. While both are part of the GE Q-Line family, THQB breakers feature a bolt-on mounting style for commercial A-Series panelboards. THQL breakers are plug-in devices designed for standard residential load centers and cannot be bolted to the panel bus.

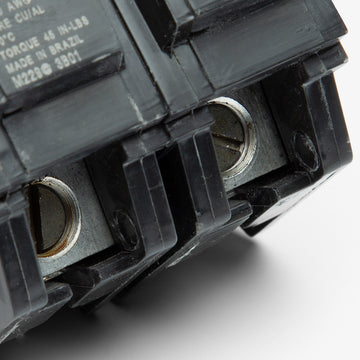

What are the box lug torque specifications for the THQB2170?
The recommended lug tightening torque depends on the wire gauge. Torque 6 AWG to 4 AWG wire to 45 in-lb, and 3 AWG to 1/0 AWG wire to 50 in-lb.
How much panel space does the THQB2170 require?
As a 2-pole Q-Line breaker, the THQB2170 requires two 1-inch spaces, occupying a total of 2 inches of width on the panel bus.
Does the THQB2170 provide ground fault or arc fault protection?
No. The THQB2170 is a standard thermal-magnetic circuit breaker providing long-time and instantaneous (LI) trip functions for overload and short-circuit protection. It does not include GFCI or AFCI capabilities.
