ABB / General ElectricTHQC1115WL
Free Shipping Over $99

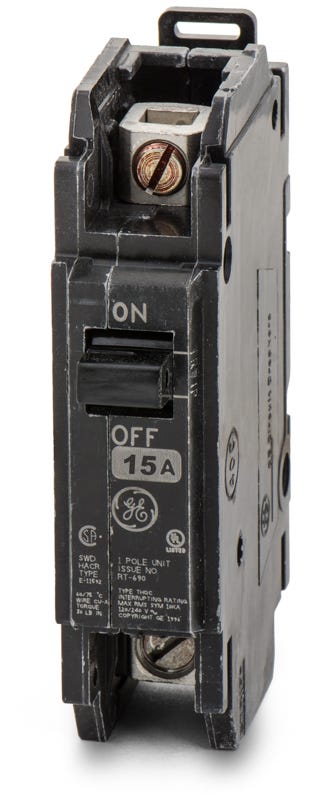

ABB / General Electric THQC1115 Molded Case Circuit Breaker
- 15A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1115
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC1115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1115 |
| Series | THQC |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Sold out
Quantity
ABB / General Electric THQC1115 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1115-R |
| Series | THQC |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Similar Items
ABB / General ElectricTHQC1120WL
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1120
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1130
30A 1 Pole Molded Case Circuit Breaker
Description
Utilizing a standard 35mm DIN rail mounting system, this 15A single-pole breaker delivers reliable thermal-magnetic protection for residential, commercial, and industrial enclosures. It integrates seamlessly into OEM panels and control cabinets requiring compact overcurrent defense. Rated at 10kAIC for 120/240VAC systems, this unit is both HACR and Switching Duty (SWD) certified, allowing it to serve as a switch for fluorescent lighting circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1115 |
| Series | THQC |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
6 answersWhat type of enclosures or panels is the THQC1115 designed for?
The THQC1115 is designed for OEM panels, control cabinets, and standalone enclosures rather than standard residential load centers. It mounts on a standard 35mm DIN rail or can be installed using compatible GE base mounting plates.
How does the THQC series differ from GE THQL breakers?
While both belong to the GE Q-Line family, they use different mounting methods. THQL breakers are plug-in devices designed for standard GE residential load centers. The THQC series features lug terminals for cable connections and is typically DIN rail or base-mounted in commercial or OEM applications.
Is the THQC1115 rated for switching fluorescent lighting loads?
Yes, 15A single-pole GE Q-Line breakers like the THQC1115 are SWD (Switching Duty) rated. This means they are UL listed to safely switch 120V fluorescent lighting circuits on and off on a regular basis.
Can this breaker be used for HVAC equipment?
Yes, the THQC1115 is HACR rated, meaning it is UL listed for use with heating, air conditioning, and refrigeration equipment that requires a 15A overcurrent protection device.
How does the thermal-magnetic trip unit function on this breaker?
The THQC1115 features fixed thermal and magnetic trip elements. The thermal bimetal strip provides long-time delay protection against sustained overloads, while the magnetic element provides instantaneous tripping to safely clear short circuits.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions, which manufactures the Q-Line breaker family. The THQC1115 may arrive with either ABB or GE branding, but the physical dimensions, mounting, and UL listings remain identical.
