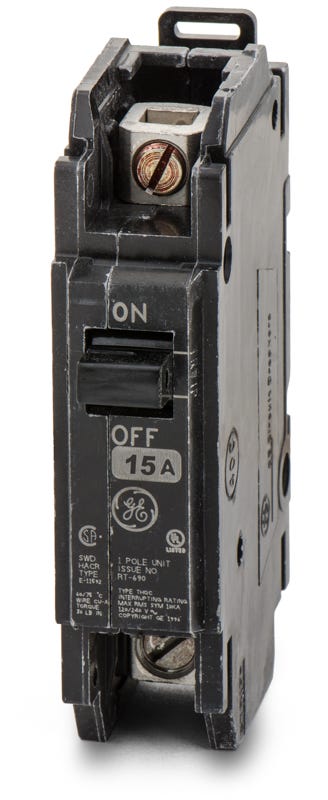

ABB / General Electric THQC1115WL Molded Case Circuit Breaker
- 15A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1115WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1115WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1115WL - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQC1120
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1120WL
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1130
30A 1 Pole Molded Case Circuit Breaker
Description
Built for versatile power distribution, the THQC1115WL is a 1-pole, 15A miniature circuit breaker from GE. It provides overcurrent protection for commercial and industrial circuits operating at 120/240VAC. The 'WL' designation indicates this unit comes with factory-assembled line and load lugs. It easily mounts onto standard 35mm DIN rails or fits into GE Q-Line enclosures. With a 10 kAIC rating, it employs a non-interchangeable thermal-magnetic trip unit and is HACR and SWD rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1115WL |
| Series | THQC |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Q-Line Enclosures, DIN Rail, OEM Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhy might the THQC1115WL breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, Q-Line breakers like the THQC1115WL are manufactured under both the ABB and GE brands. The breakers are identical in form, fit, and function regardless of the logo on the label.
What does the WL suffix indicate on the THQC1115WL catalog number?
The WL designation means the breaker comes equipped with factory-installed line and load lugs. This allows for direct wire connections without needing to source separate terminal hardware.
Can I use the THQC1115WL in a standard GE residential load center?
No. Unlike THQL plug-in or THQB bolt-on breakers, the THQC series features a lug-to-lug design intended for DIN rail or surface mounting in control panels and specific Q-Line enclosures. It will not connect to a standard load center busbar.
How is the THQC1115WL breaker mounted in an enclosure?
This breaker features a feed-thru design that can be surface mounted or snapped directly onto a standard 35mm DIN rail.
Can the THQC1115WL circuit breaker be reverse fed?
Yes, this breaker is suitable for reverse feed applications, allowing the line and load connections to be swapped if required by the panel or enclosure layout.
Is the THQC1115WL rated for switching duty or HVAC applications?
Yes, this breaker is both SWD (Switching Duty) rated for regular switching of 120V fluorescent lighting loads, and HACR rated for use with heating, air conditioning, and refrigeration equipment.
