ABB / General Electric THQC2170WL Molded Case Circuit Breaker
- 70A
- 2 Pole
- DIN Rail
ABB / General Electric
THQC2170WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC2170WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

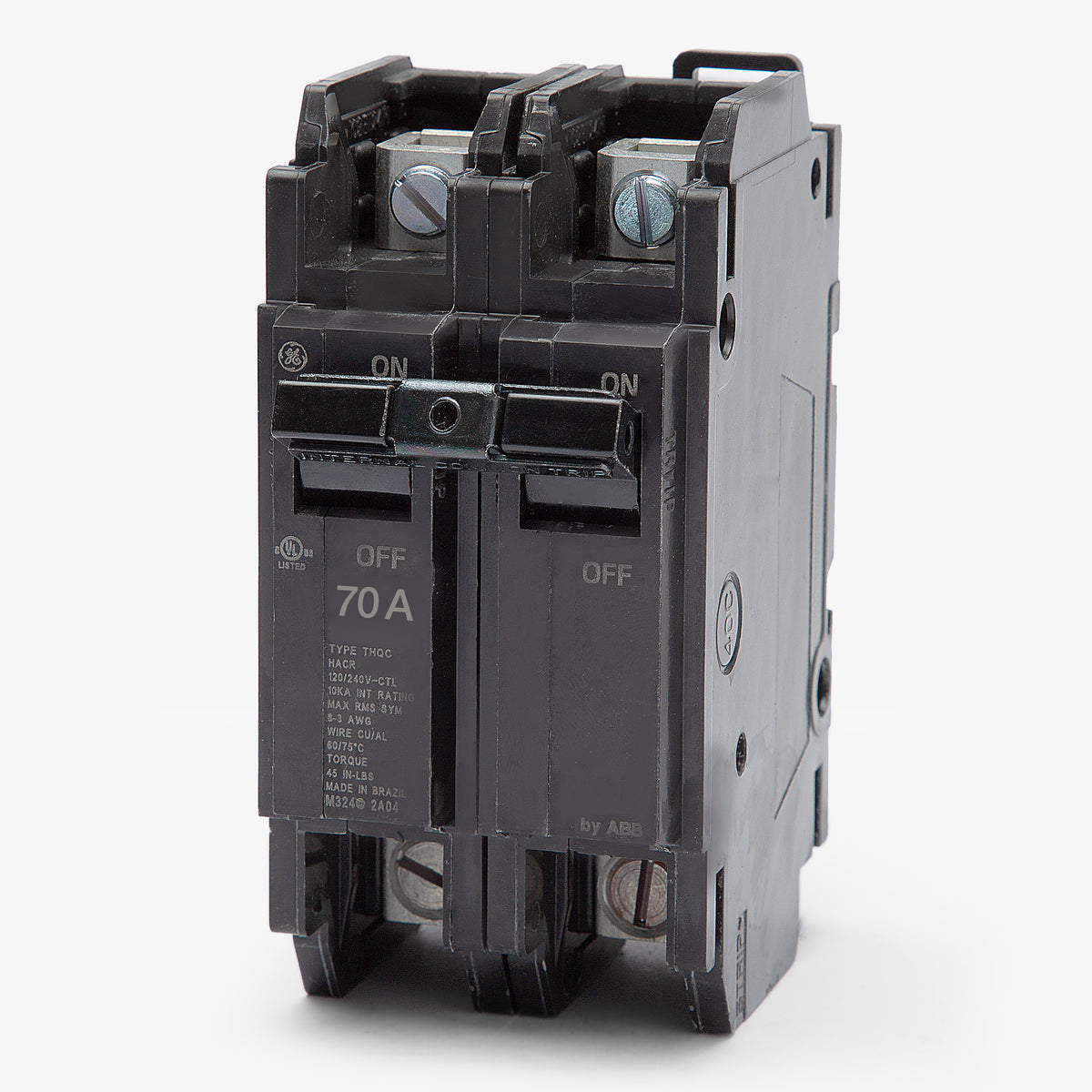

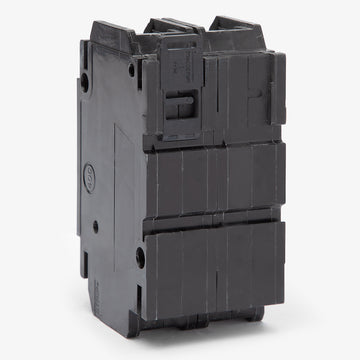

ABB / General Electric THQC2170WL - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQC2180
80A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC2180WL
80A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC2160
60A 2 Pole Molded Case Circuit Breaker
Description
Built for versatile power distribution, the GE THQC2170WL is a 2-pole, 70A circuit breaker from the Q-Line series providing robust thermal-magnetic protection. Designed for easy integration, this breaker mounts onto standard 35mm DIN rail systems. The "WL" designation indicates it comes complete with factory-installed line and load lugs, streamlining wiring in OEM panels. Delivering a 10 kAIC rating at 120/240V, the device includes a visual trip indicator and is HACR rated for HVAC loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC2170WL |
| Series | THQC |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
5 answersWhat does the WL suffix mean in the THQC2170WL catalog number?

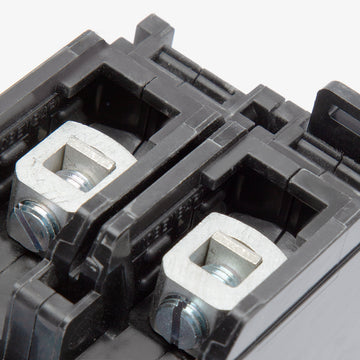

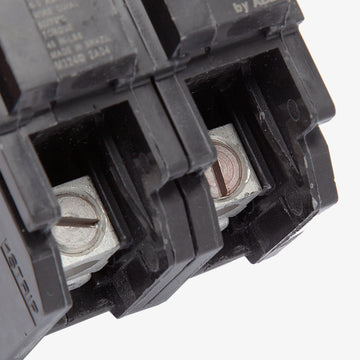

The WL designation indicates that the circuit breaker comes with factory-installed line and load lugs. This allows for immediate cable-in, cable-out wiring in OEM panels or DIN rail systems.
What type of mounting hardware is required for the THQC2170WL?
This feed-thru breaker is designed for cable-in, cable-out wiring and mounts directly onto standard 35mm DIN rail systems commonly used in OEM panels and control enclosures.
Is the THQC2170WL suitable for HVAC applications?
Yes, this circuit breaker is HACR certified, meaning it is rated for use with heating, air conditioning, and refrigeration equipment loads.
Why might this breaker be labeled as either ABB or General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the THQC2170WL may feature either ABB or GE branding, but the physical dimensions, fit, and electrical functions remain identical.
Is the THQC2170WL circuit breaker UL listed?
Yes, this breaker is UL listed under File E11592 for safety and reliability in power distribution applications.
