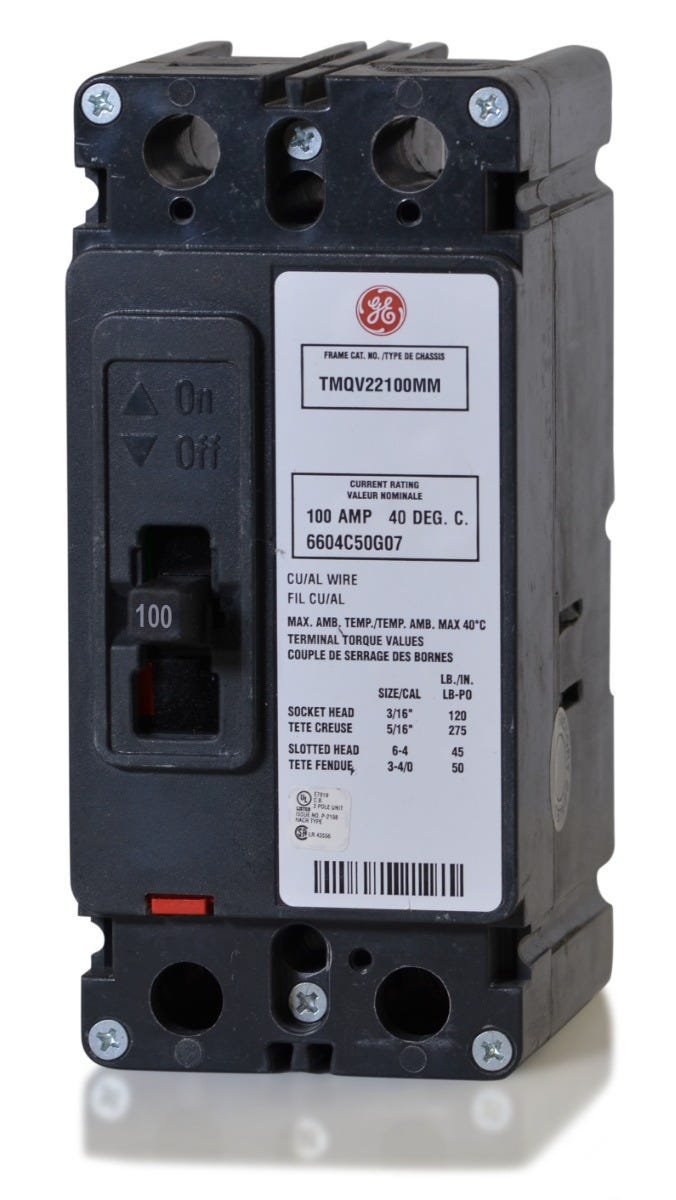

ABB / General Electric TMQV22100MM Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
ABB / General Electric
TMQV22100MM
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQV22100MM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQV22100MM - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQV22150MM
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV22200MM
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV22225MM
225A 2 Pole Molded Case Circuit Breaker
Description
Built for multi-family applications, the GE TMQV22100MM serves as a heavy-duty tenant main breaker. This 100A, 2-pole device features a thermal-magnetic trip unit with fixed long-time and instantaneous functions. It mounts into GE Meter Mod III meter stacks using a secure bolt-on connection. This unit serves as a drop-in replacement for the discontinued TMQD22100. Rated at 100 kAIC at 240V, this Q-Line breaker delivers superior short-circuit protection and includes a mounting hardware kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQV22100MM |
| Series | TMQV |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Mounting Hardware Kit |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, Non-Interchangeable Trip, Common Trip, Extra High Interrupting Capacity |
Product FAQs
4 answersWhat equipment is the TMQV22100MM designed to be installed in?
This breaker is specifically engineered to mount into GE Meter Mod III modular metering stacks. It functions as a tenant main breaker for multi-family residential and commercial group metering applications.
Can the TMQV22100MM replace older discontinued GE breakers?
Yes, this unit serves as a direct drop-in replacement for the legacy TMQD22100 circuit breaker, allowing you to upgrade or maintain existing GE Meter Mod III setups without modifying the enclosure.
Does the TMQV22100MM include the necessary mounting hardware?
Yes, this bolt-on circuit breaker includes the required mounting hardware kit for immediate installation into your meter stack.
Is the TMQV22100MM suitable for use with heating and air conditioning equipment?
Yes, this breaker is HACR rated, making it an approved overcurrent protection device for heating, air conditioning, and refrigeration circuits.
