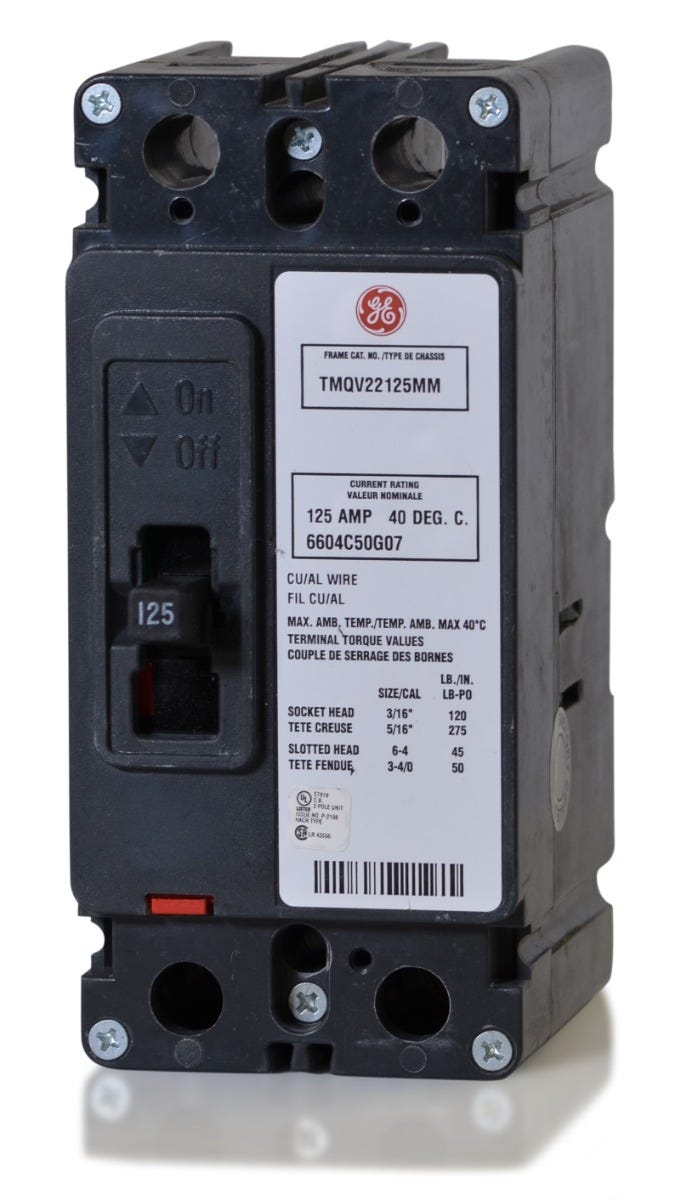

ABB / General Electric TMQV22125MM Molded Case Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
ABB / General Electric
TMQV22125MM
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQV22125MM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQV22125MM - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQV22100MM
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV22200MM
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV22225MM
225A 2 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, the GE TMQV22125MM is a 125A, 2-pole tenant main breaker designed for multi-family and commercial use. It utilizes a non-interchangeable thermal-magnetic trip unit for reliable overcurrent protection. This bolt-on MCCB installs into GE Meter Mod III meter stacks and accepts #4 to 4/0 AWG copper or aluminum wire. It is an exact replacement for the legacy TMQD22125. Featuring a 100 kAIC rating at 240V, it provides exceptional fault clearing and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQV22125MM |
| Series | TMQV |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Mounting Hardware Kit |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, Non-Interchangeable Trip, Common Trip, Extra High Interrupting Capacity |
Product FAQs
7 answersWhat equipment is the TMQV22125MM designed to be installed in?
This breaker is specifically designed for use in GE Meter Mod III and Mini Mod III meter stacks, where it functions as a tenant main breaker.
Can the TMQV22125MM replace older TMQD series breakers?
Yes, the TMQV22125MM serves as a direct drop-in replacement for the legacy TMQD22125. It maintains the same physical footprint for existing 125A sockets while offering an upgraded 100kAIC interrupting rating.
Why might this breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. As a result, TMQV series breakers may feature either ABB or GE branding depending on the production batch, but the form, fit, and function remain identical.
Does the TMQV22125MM come with load lugs installed?
Yes, this breaker includes factory-installed load lugs that accept #4 AWG to 4/0 AWG copper or aluminum wire, as well as the necessary mounting hardware for bolt-on installation in meter stacks.
What does the "MM" suffix in the TMQV22125MM catalog number indicate?
The "MM" suffix indicates that the breaker is configured with the necessary mounting hardware and load lugs specifically for GE Meter Mod III and Mini Mod III modular metering applications.
Why is a 100kAIC rating important for this tenant main breaker?
The extra-high 100kAIC interrupting capacity allows this breaker to safely clear severe fault currents often found in large multi-family or commercial group metering installations, ensuring superior protection compared to standard residential breakers.
Are the trip settings adjustable on the TMQV22125MM?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous trip functions.
