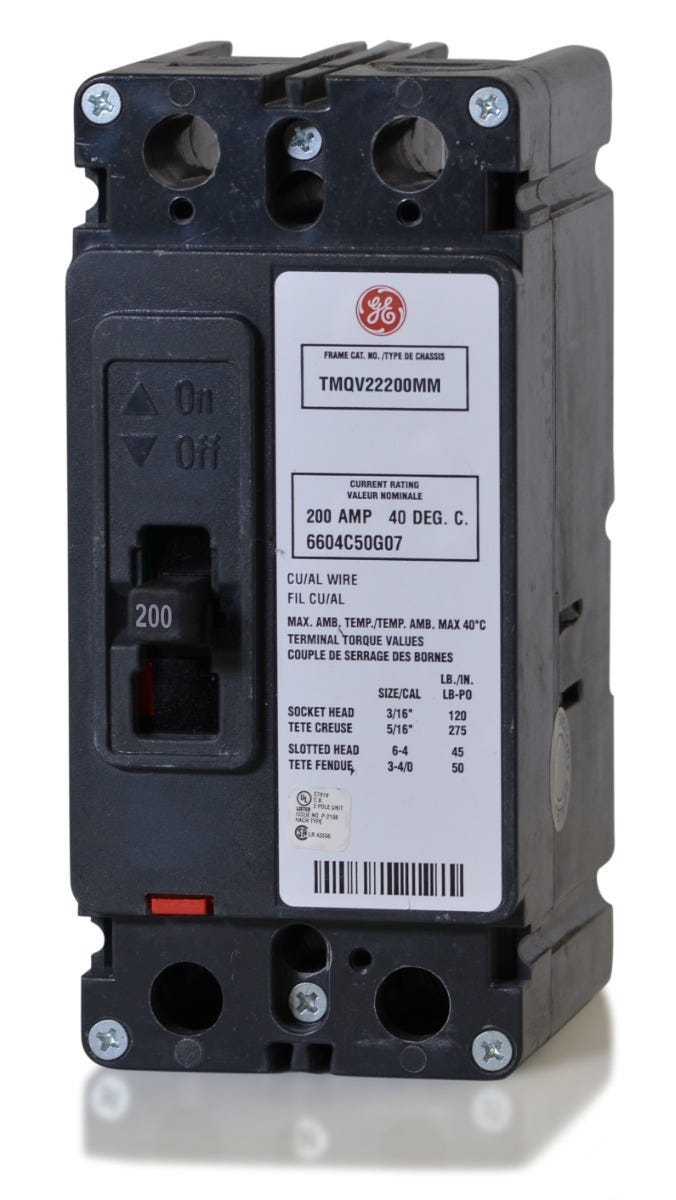

ABB / General Electric TMQV22200MM Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
ABB / General Electric
TMQV22200MM
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQV22200MM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQV22200MM - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQV22150MM
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV22125MM
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV22100MM
100A 2 Pole Molded Case Circuit Breaker
Description
Built for high-density metering environments, the GE TMQV22200MM is a 200A tenant main breaker featuring a non-interchangeable thermal-magnetic trip unit. This bolt-on MCCB is specifically designed to fit GE Meter Mod III modular metering stacks and 200A sockets. It serves as an exact substitute for the discontinued TMQD22200, simplifying maintenance. With an exceptional 100kAIC rating at 240VAC, the breaker easily handles demanding fault currents and includes the essential mounting kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQV22200MM |
| Series | TMQV |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Mounting Hardware Kit |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, Non-Interchangeable Trip, Common Trip, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat equipment is the TMQV22200MM breaker designed to fit?
This breaker is specifically engineered for use in GE Meter Mod III modular metering stacks and 200A meter sockets as a tenant main breaker.
Can the TMQV22200MM replace older discontinued GE breakers?
Yes, it serves as a direct drop-in replacement for the obsolete TMQD22200 circuit breaker, maintaining compatibility with existing 200A modular metering setups.
What is required to install this breaker into a meter stack?
This breaker utilizes a bolt-on connection specifically designed for GE Meter Mod III modular metering stacks. It includes the essential mounting hardware kit required to secure it to the bus.
What does the 100kAIC rating indicate for this tenant main breaker?
The 100kAIC rating means the breaker can safely interrupt up to 100,000 amps of fault current at 240V. This extra high interrupting capacity is often required for high-density commercial and multi-family metering environments.
Does this breaker carry an HACR rating?
Yes, the TMQV22200MM is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
Are the trip functions on this breaker adjustable or interchangeable?
No, this breaker features a non-interchangeable thermal magnetic trip unit. Both the long-time and instantaneous trip functions are fixed and cannot be adjusted in the field.
