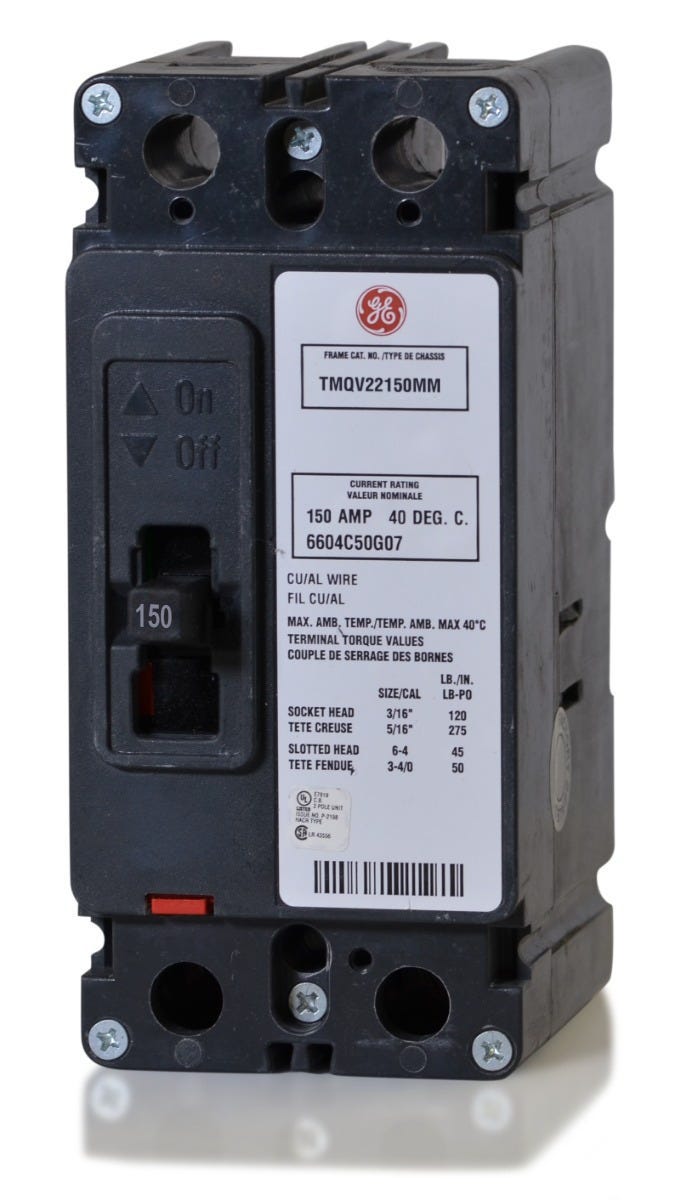

ABB / General Electric TMQV22150MM Molded Case Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
ABB / General Electric
TMQV22150MM
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQV22150MM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQV22150MM - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TMQV22150MM - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQV22150MM |
| Series | TMQV |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Mounting Hardware Kit |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, Non-Interchangeable Trip, Common Trip, Extra High Interrupting Capacity |
Quantity
ABB / General Electric TMQV22150MM - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TMQV |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Mounting Hardware Kit |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, Non-Interchangeable Trip, Common Trip, Extra High Interrupting Capacity |
Similar Items
ABB / General ElectricTMQV22200MM
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV22100MM
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV22225MM
225A 2 Pole Molded Case Circuit Breaker
Description
Providing essential tenant main protection, the GE TMQV22150MM is a 150A, 2-pole molded case circuit breaker. It features fixed long-time and instantaneous trip functions to safeguard residential and commercial electrical systems. Engineered for compatibility, it fastens into GE Meter Mod III meter stacks using a bolt-on mounting style. It successfully replaces the older TMQD22150 model. With a massive 100 kAIC interrupting capacity at 240V, this HACR-rated breaker includes a mounting kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQV22150MM |
| Series | TMQV |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Mounting Hardware Kit |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, Non-Interchangeable Trip, Common Trip, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat equipment is the TMQV22150MM circuit breaker designed to fit?
This breaker is specifically engineered for compatibility with GE Meter Mod III meter stacks, serving as a tenant main breaker.
Can the TMQV22150MM replace older GE circuit breakers?
Yes, the TMQV22150MM successfully replaces the older GE TMQD22150 model, offering the same 150A rating and bolt-on mounting for meter stacks.
What wire sizes are accepted by the load side lugs on this breaker?
The lugs on the TMQV22150MM accept wire gauges from #4 AWG up to 4/0 AWG and are compatible with both copper and aluminum conductors.
How does this breaker mount into the meter stack?
The TMQV22150MM features a bolt-on connection type, allowing it to be securely fastened directly into the GE Meter Mod III meter stack bus.
Why does this tenant main breaker have a 100kAIC rating?
The 100kAIC interrupting capacity provides high-level short circuit protection, which is often required for tenant main breakers in multi-metering applications where the available fault current from the utility is extremely high.
Are the trip settings on the TMQV22150MM adjustable?
No, this breaker features a fixed thermal magnetic trip unit. Both the long-time and instantaneous (LI) trip functions are factory set and non-interchangeable.
