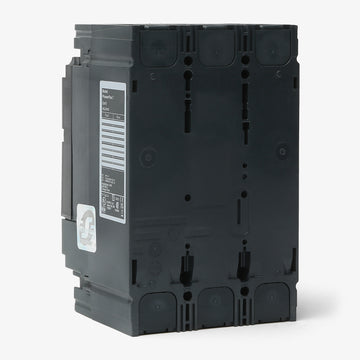

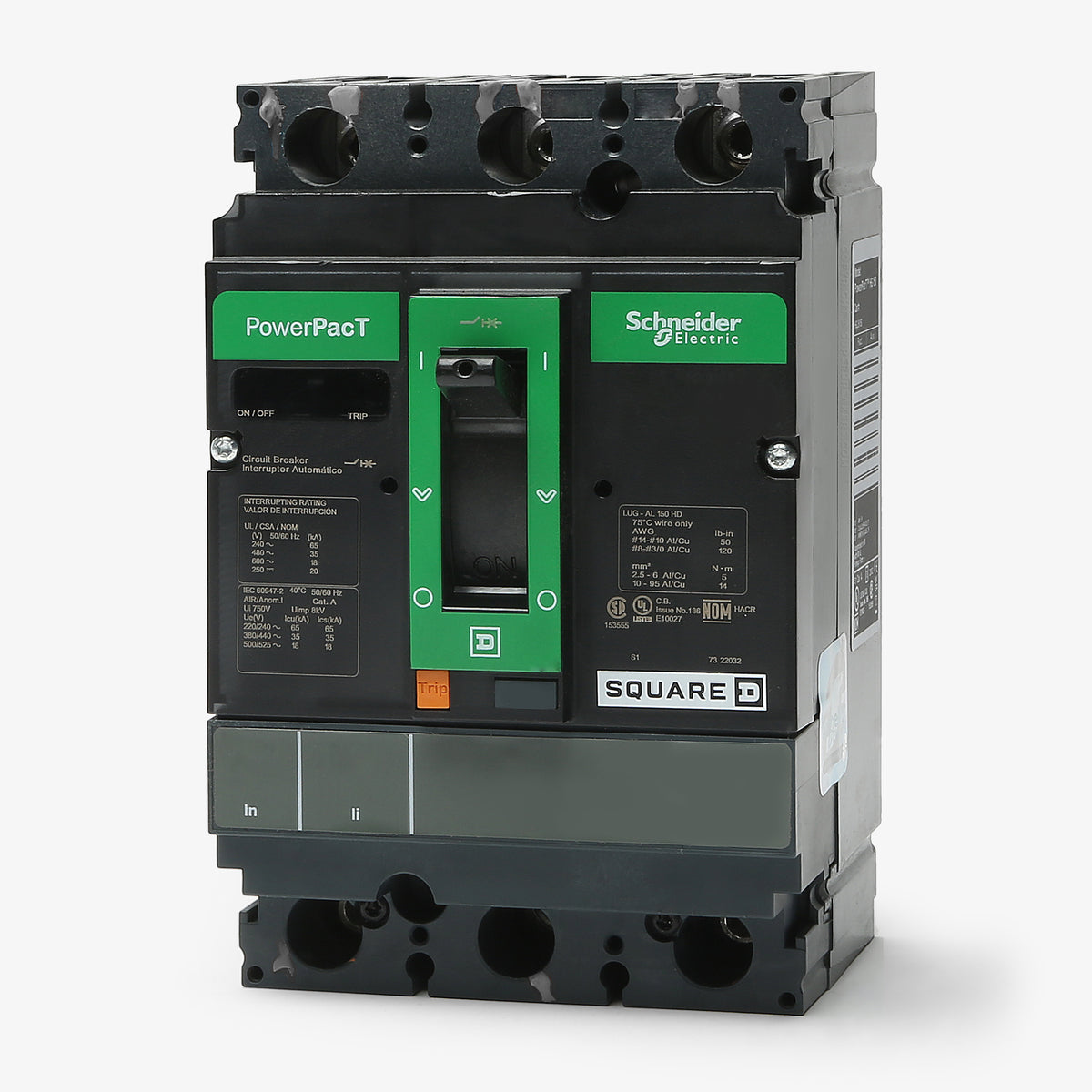

Square D HJL36110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
Square D
HJL36110
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL36110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJL36110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
3 Pole Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the Square D HJL36110 is a 3-pole, 110A PowerPacT H-Frame MCCB. It provides reliable thermal-magnetic protection for commercial systems. This unit-mount breaker comes equipped with line and load lugs, ready to install into industrial control panels and switchboards. It accepts 14 to 3/0 AWG conductors. Featuring a "J" interrupting rating, it delivers 65kAIC at 480VAC and 100kAIC at 240VAC. It is HACR rated and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL36110 |
| Series | HJL |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Reverse Feed, Trip-Free Mechanism, RoHS Compliant, Mercury Free, PVC Free |
Product FAQs
7 answersWhat do the J and L stand for in the HJL36110 catalog number?
In the Square D PowerPacT H-frame nomenclature, the J indicates the interrupting rating tier (which delivers up to 100kA at 240VAC), and the L designates it as a unit mount circuit breaker equipped with lugs on both the line and load ends.
Is the HJL36110 rated for 100% continuous current?
No, the standard HJL36110 is rated for 80% continuous current. If your application requires a 100% rated circuit breaker, the correct catalog number is the HJL36110C.
Can I plug the HJL36110 directly into a Square D I-Line panelboard?
No, this is a unit mount circuit breaker intended for base or panel mounting in control panels and switchboards. For an I-Line plug-on equivalent, you will need to order the HJA36110.
Is the HJL36110 suitable for reverse feed applications?
Yes. Standard unit mount PowerPacT H-frame thermal magnetic circuit breakers feature sealed trip units and are approved for reverse feed installations.

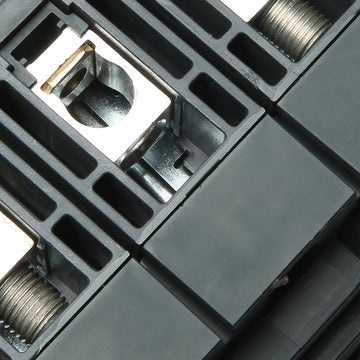

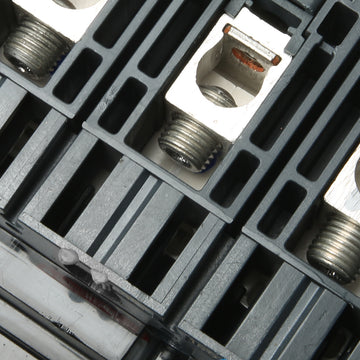

What replacement lugs are compatible with the HJL36110?
The factory standard replacement lug kit is part number AL150HD. These standard lugs accept aluminum or copper conductors ranging from 14 AWG to 3/0 AWG.
Can I field install a shunt trip or auxiliary switch on the HJL36110?
Yes, PowerPacT H-frame circuit breakers support a variety of field installable internal accessories. Auxiliary switches, alarm switches, shunt trips, and undervoltage releases can be installed directly behind the front cover of the breaker.
Is the HJL36110 HACR rated?
Yes. As a UL 489 listed circuit breaker, the HJL36110 carries a HACR rating, making it suitable for use with group motor applications like heating, air conditioning, and refrigeration equipment.
