Siemens 3VA4112-6ED34-0AA0 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Siemens
3VA4112-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4112-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

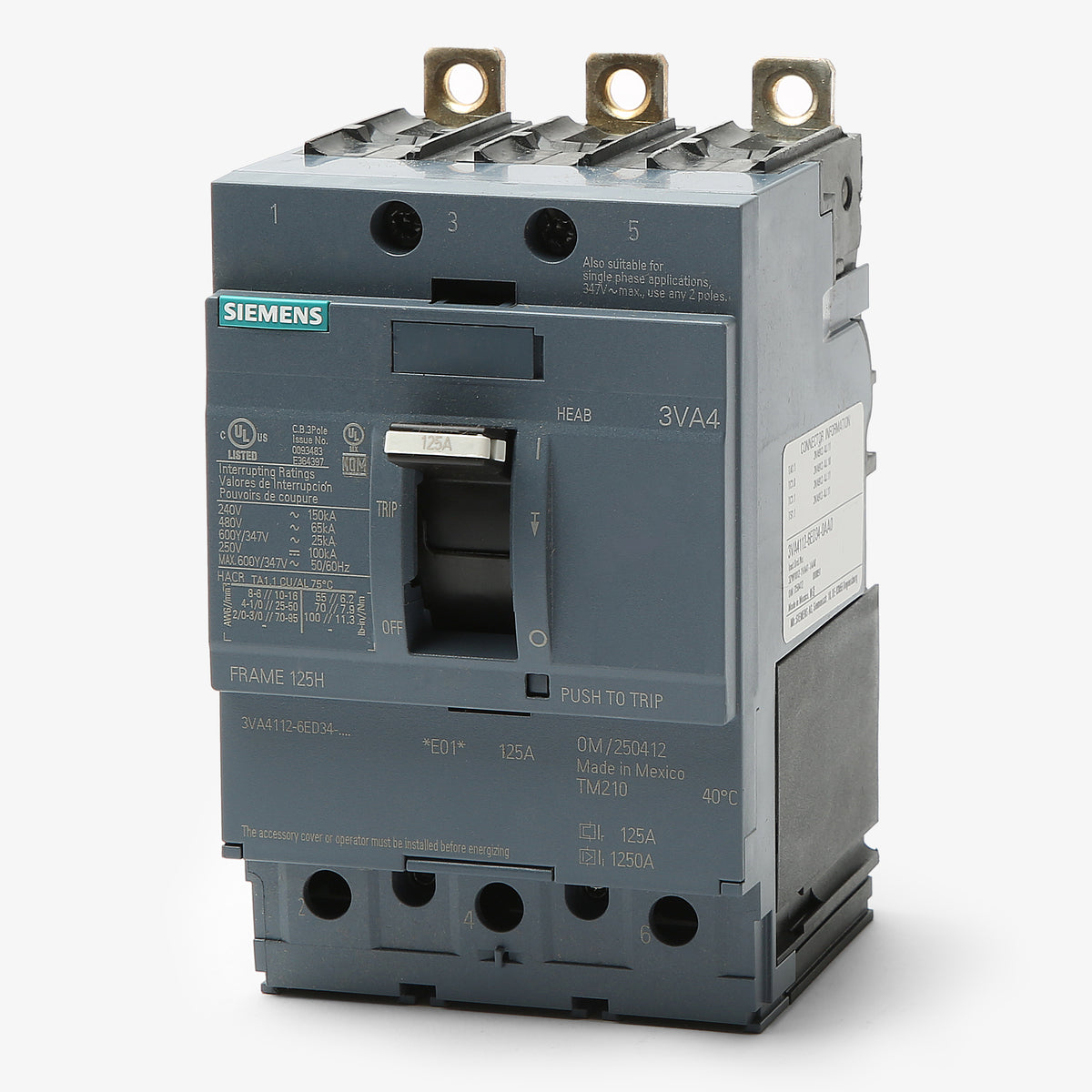

Siemens 3VA4112-6ED34-0AA0 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the Siemens 3VA4112-6ED34-0AA0 is a 125A, 3-pole molded case circuit breaker. It features a bolt-on mounting configuration designed for seamless integration into Siemens P1, P2, and P3 panelboards. This unit serves as an exact replacement for legacy HEAB series breakers.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards and enclosures are compatible with the 3VA4112-6ED34-0AA0?
This 3VA41 frame circuit breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards. Specific mounting hardware kits may be required depending on the exact enclosure type.
Can this circuit breaker be used in direct current (DC) applications?
Yes, in addition to standard AC systems, this breaker is rated for use on up to 250VDC systems with a maximum interrupting capacity of 100kA, making it suitable for select direct current power distributions.

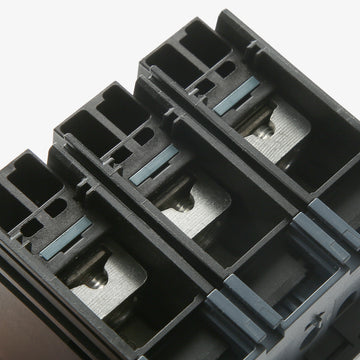

What wire sizes and materials are supported by the terminal lugs?
The factory-installed lugs are rated for both copper and aluminum (Cu/Al) conductors, accommodating wire sizes ranging from 8 AWG up through 3/0 AWG. Always verify proper torque specifications during installation.
Are the trip settings on this 125A breaker field-adjustable?
No. It utilizes a thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) protection. The trip curve parameters cannot be modified by the user.

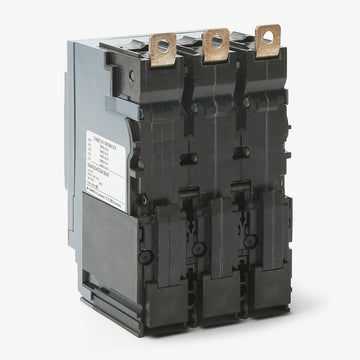

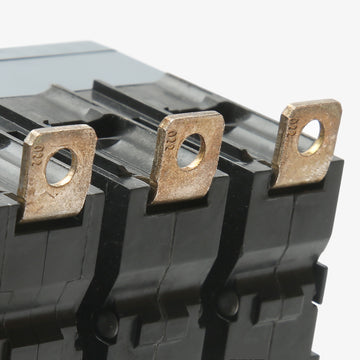

How does this breaker mount into the panel chassis?
The 3VA4112-6ED34-0AA0 uses a bolt-on mounting configuration. It fastens directly to the panelboard busbars via threaded connections rather than snapping into place, ensuring a rigid mechanical and electrical connection under high fault conditions.
