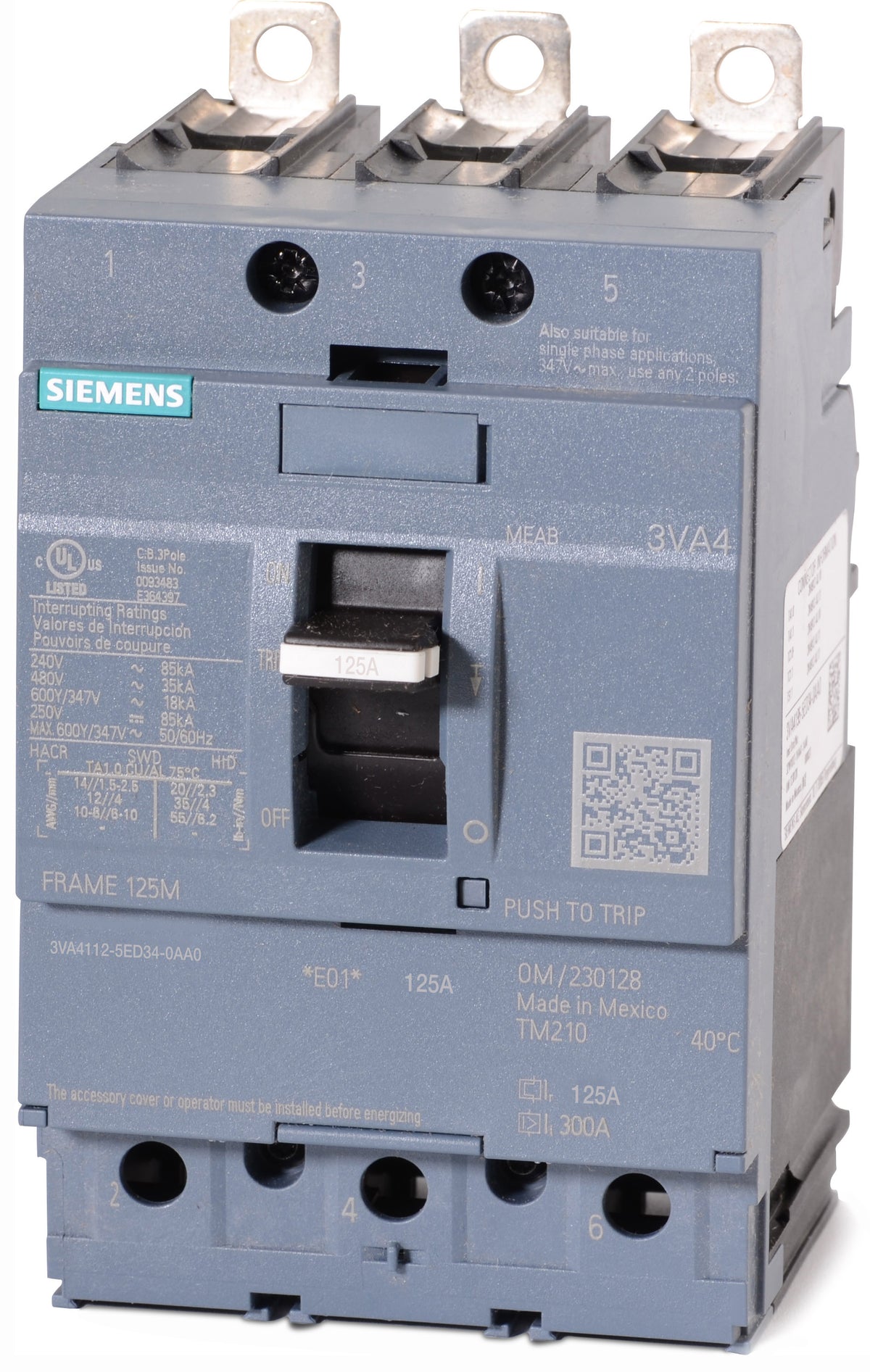

Siemens 3VA4112-5ED34-0AA0 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Siemens
3VA4112-5ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4112-5ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4112-5ED34-0AA0 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial environments, the Siemens 3VA4112-5ED34-0AA0 is a 3-pole, 125A molded case circuit breaker. It utilizes a fixed thermal-magnetic trip mechanism to deliver precise LI protection for three-phase systems. This bolt-on breaker fits seamlessly into Siemens P1, P2, and P3 panelboards. It can also upgrade legacy MEAB series or ED63B125 units using the correct kit. It features a 35 kAIC rating at 480V and reverse feed capability.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4112-5ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
4 answersWhich panelboards accept the 3VA4112-5ED34-0AA0 breaker?
This breaker is engineered for commercial power distribution and directly integrates into Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Does this 3VA41 frame breaker have an adjustable trip unit?
No, it is equipped with a thermal-magnetic trip unit featuring fixed long-time and instantaneous protection limits, meaning the trip thresholds cannot be field-adjusted.
Are the terminal lugs included with this circuit breaker?
Yes, it features factory-installed load-side lugs that accommodate 8 AWG through 3/0 AWG copper or aluminum conductors for field wiring.
Can this Siemens 3-pole breaker be used in direct current systems?
Yes, in addition to standard AC applications, this breaker is rated for 250V DC electrical systems and provides an 85kA short-circuit interrupting capacity.
