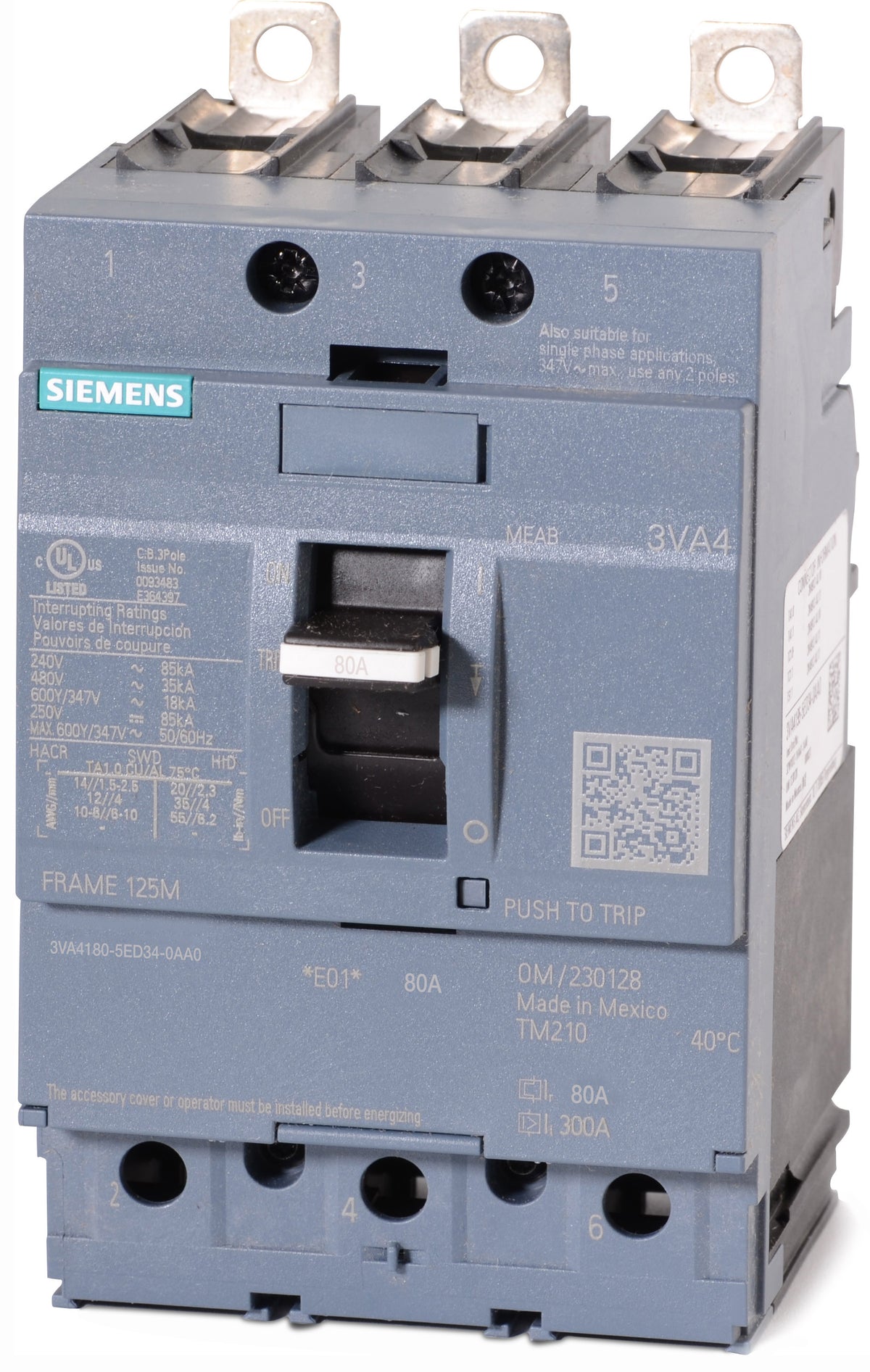

Siemens 3VA4180-5ED34-0AA0 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Panel Mount
Siemens
3VA4180-5ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4180-5ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4180-5ED34-0AA0 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Operating within the SENTRON 3VA4 family, the Siemens 3VA4180-5ED34-0AA0 is an 80A, 3-pole molded case circuit breaker. It provides a 35kAIC rating at 480VAC. This panel mount breaker fits Siemens P1, P2, and P3 panelboards. It substitutes the discontinued ED43B080 breaker, requiring a separate mounting kit for retrofits. The TM210 trip unit delivers reliable long-time and instantaneous fault protection. It is HACR rated, current limiting, and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4180-5ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersIs the 3VA4180-5ED34-0AA0 a direct replacement for the legacy ED43B080?
Yes, the 3VA41 series replaces the discontinued ED4 frame breakers, including the 80A ED43B080. When retrofitting this into an existing Siemens panelboard, a new 3VA41-specific mounting strap kit is required.
What hardware is required to install this breaker in a Siemens panelboard?
While compatible with Siemens P1, P2, and P3 panelboards as well as switchboards, the breaker requires a specific mounting strap kit or branch breaker kit (such as the S3VA41TD for switchboards) matching your exact panel type. It does not mount using legacy ED-frame hardware.
What type of protection does the LI trip unit provide?
The LI designation indicates Long-Time and Instantaneous trip functions. This thermal-magnetic breaker features fixed thermal settings for overload protection and fixed magnetic settings for short-circuit protection.
What wire sizes and materials are supported by the terminals on the 3VA4180-5ED34-0AA0?
The standard load-side lugs accept 14 AWG to 3/0 AWG wire. Both copper (Cu) and aluminum (Al) conductors are supported.
Can the 3VA4180-5ED34-0AA0 be used in 250V DC systems?
Yes, this breaker is rated for 250V DC applications and provides an 85kA interrupting capacity (AIC) for direct current systems.
What is the frame size for the 3VA4180-5ED34-0AA0?
This breaker is built on the Siemens 3VA41 frame, which has a maximum capacity of 125A. This specific unit is factory-configured with an 80A fixed trip rating.
