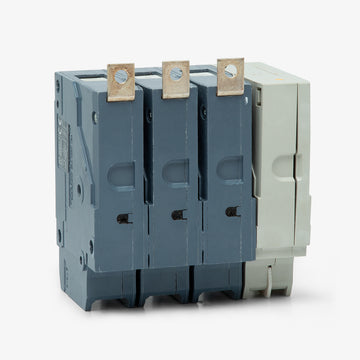

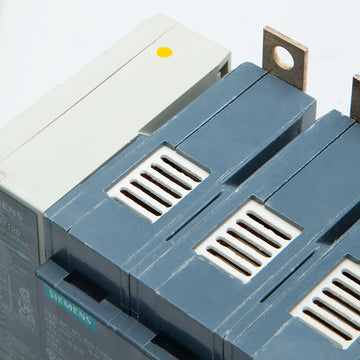

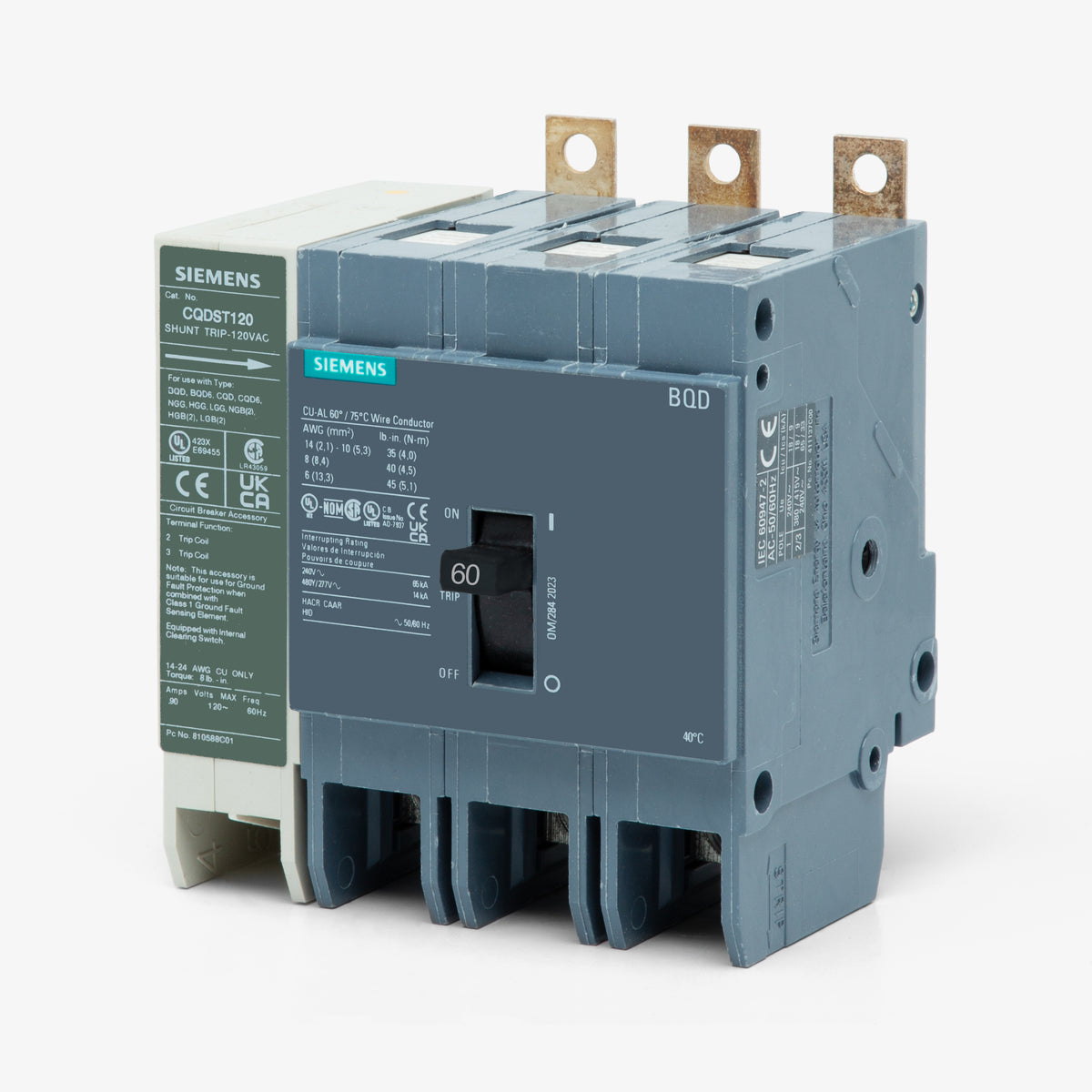

Siemens BQD36000S01 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
BQD36000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD36000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD36000S01 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for remote shutdown applications, the Siemens BQD36000S01 is a 3-pole, 60A molded case circuit breaker featuring a factory-installed shunt trip. It delivers reliable thermal-magnetic protection for commercial environments. This bolt-on MCCB installs into Siemens P1 through P5 panelboards. The secure mounting style ensures stable connections in high-vibration settings. Rated at 14kAIC at 480Y/277V and 65kAIC at 240V, this HACR-rated breaker handles substantial fault currents.Specifications
| Brand | Siemens |
|---|---|
| Series | BQD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the S01 suffix indicate on the BQD36000S01 breaker?
The S01 suffix means this breaker includes a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely for emergency shutdown or control applications.
Can I install the BQD36000S01 in a standard residential load center?
No. This is a bolt-on molded case circuit breaker designed exclusively for Siemens commercial panelboards, specifically the P1, P2, P3, P4, and P5 series. It will not fit into standard residential plug-on or bolt-on load centers.
What are the conductor requirements for wiring the BQD36000S01?

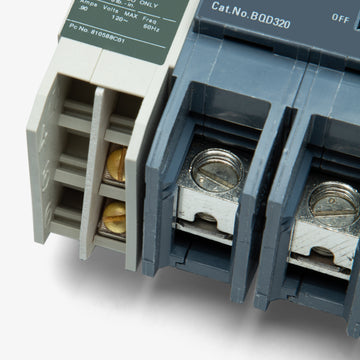

The factory-installed load lugs accept 8 to 1 AWG copper (Cu) or 6 to 1/0 AWG aluminum (Al) conductors. The terminals are rated for use with 60C or 75C wire.
Is the BQD36000S01 suitable for HVAC equipment and reverse feeding?
Yes, this breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also approved for reverse feed applications, allowing it to be used as a main breaker or back-fed device.
Can I substitute a CQD series breaker for this BQD model?
No. While BQD and CQD frames share similar electrical characteristics, BQD breakers feature a bolt-on connection for panelboards. CQD breakers are designed for DIN rail mounting and will not mount correctly in P-series panelboards.
How does the factory-installed shunt trip operate?
The internal shunt trip coil requires a 120VAC control voltage. When voltage is applied to the coil via an external switch, relay, or fire alarm system, it mechanically trips the breaker to open the circuit and disconnect power.
