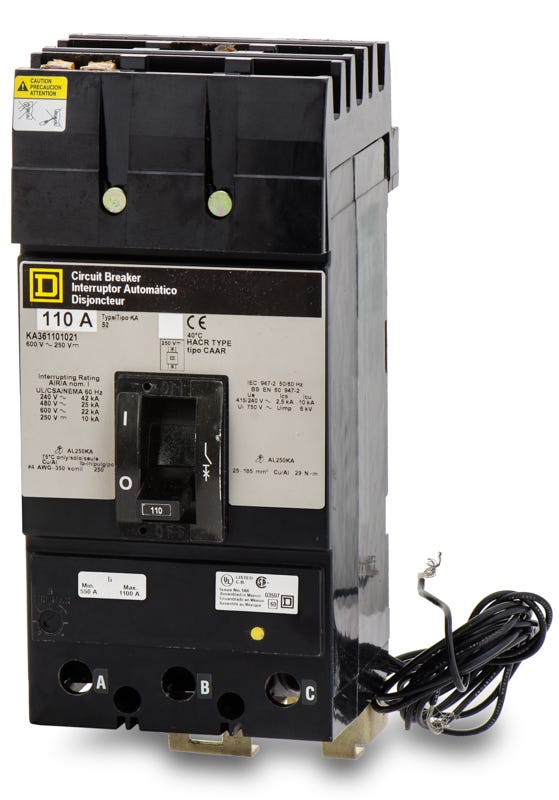

Square D KA36110-1021 Molded Case Circuit Breaker
- 110A
- 3 Pole
- I-Line
Square D
KA36110-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
KA36110-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA36110-1021 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
KA36200-1021 - 200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy K-Frame series, the Square D KA36110-1021 is a 3-pole, 110A MCCB designed for commercial applications. It features thermal-magnetic trip technology with fixed thermal and adjustable magnetic settings. This breaker installs into Square D I-Line panelboards. For modern upgrades, it is replaced by the H-Frame HGA36110SA. The "-1021" suffix indicates a factory-installed 120-240VAC shunt trip for remote tripping. It delivers 25kAIC at 480VAC and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA36110-1021 |
| Series | KA |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards accept the KA36110-1021 circuit breaker?
This legacy K-Frame breaker features a plug-in connection designed specifically for installation in Square D I-Line panelboards and switchboards.
What does the 1021 suffix indicate on this catalog number?
The 1021 suffix designates that this breaker includes a factory-installed 120-240VAC shunt trip accessory. This allows the breaker to be tripped remotely by an external voltage signal.
Is the KA36110-1021 still actively manufactured, or is there a modern replacement?
The KA36110-1021 is part of the legacy Square D K-Frame series. For modern panel upgrades or replacements, engineers typically cross-reference this unit to the current H-Frame equivalent, such as the HGA36110 or HGA36110SA.
How can I visually verify if the KA36110-1021 has tripped?
This breaker is equipped with a Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle moves to a center position and a high-visibility red indicator appears, allowing for rapid troubleshooting.
Are the trip settings adjustable on this 110A breaker?
The KA36110-1021 utilizes a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection.
