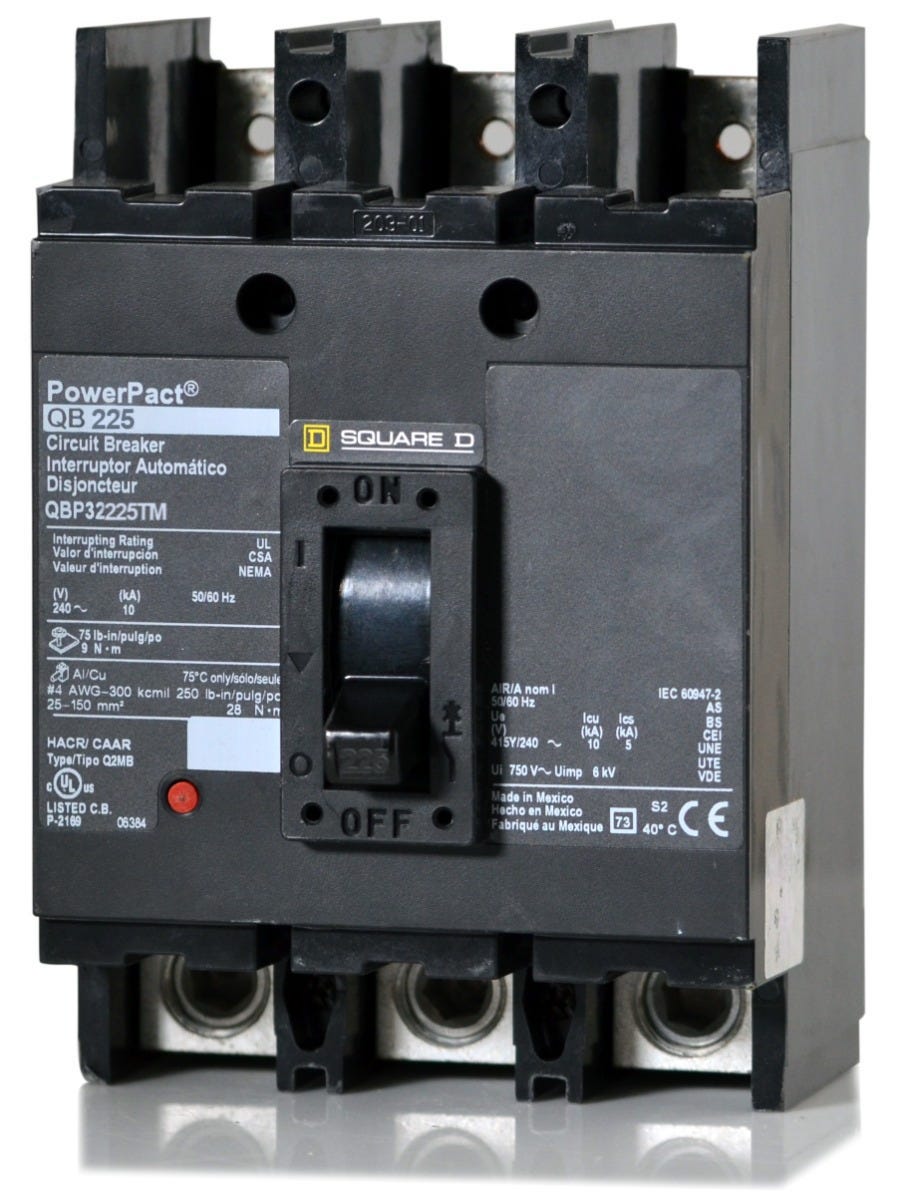

Square D QBP32225TM Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
QBP32225TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP32225TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP32225TM - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBP32225TM - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBP32225TM |
| Series | QBP |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Sold out
Quantity
Square D QBP32225TM - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBP32225TM |
| Series | QBP |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the PowerPact Q-frame family, this 225A, three-pole molded case circuit breaker provides dependable thermal-magnetic protection for commercial and residential distribution systems. This unit-mount breaker installs into Square D Meter-Pak and EZ Meter-Pak metering equipment. It also serves as a direct replacement for legacy Q23225 breakers. Rated for 10kAIC at 240VAC, the QBP32225TM features fixed long-time and instantaneous (LI) trip functions.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP32225TM |
| Series | QBP |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Product FAQs
7 answersIs the QBP32225TM compatible with standard load centers?
No, this specific breaker is engineered exclusively for use in Square D Meter-Pak and EZ Meter-Pak metering equipment, rather than standard residential load centers.
Can the QBP32225TM replace older Square D Q-Frame breakers?
Yes, this PowerPacT Q-Frame breaker serves as a direct drop-in replacement for discontinued legacy Q23225 circuit breakers.
What are the conductor requirements for wiring the QBP32225TM?
The breaker accepts both aluminum and copper wiring, supporting conductor sizes from 4 AWG up to 300 kcmil for flexible installation in commercial metering setups.
How does the trip unit on the QBP32225TM protect electrical systems?
The breaker uses a thermal magnetic trip mechanism to provide long-time protection against continuous overloads and instantaneous protection against sudden short circuits.
What type of terminal connections does the QBP32225TM require?
This unit mount breaker utilizes a bolt-on connection with stud and tapped pad terminals, requiring specific mounting hardware for secure installation in Meter-Pak centers.
Are the trip settings on the QBP32225TM adjustable?
No, the thermal and magnetic trip settings on this breaker are fixed and non-interchangeable.
Does the QBP32225TM include a visual trip indicator?
Yes, this breaker features a Visi-Trip indicator to help electricians quickly identify tripped circuits during maintenance and troubleshooting.
