Square D QO130VH Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Square D
QO130VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO130VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO130VH - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
Designed to handle demanding electrical environments, this high-interrupting 30A single-pole device provides robust protection for commercial facilities. It fits seamlessly into Square D QO load centers, NQ panelboards, and Speed-D switchboards using a standard plug-on connection. With an upgraded 22kAIC rating, it safely clears severe short circuits, while the signature Visi-Trip window allows for rapid visual fault detection to keep critical systems running smoothly.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO130VH |
| Series | QO |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards, Speed-D Switchboard Distribution Panels |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Product FAQs
7 answersWhat panels are compatible with the QO130VH circuit breaker?
This breaker is designed for use in Square D QO load centers, NQ panelboards, NQOD panelboards, and Speed-D switchboard distribution panels. It will not fit in Square D Homeline panels.
What does the VH stand for in the QO130VH catalog number?
The VH designates a Very High interrupting rating. While standard QO breakers have a 10kAIC rating, the QO130VH is rated for 22kAIC to safely clear more severe short circuits.

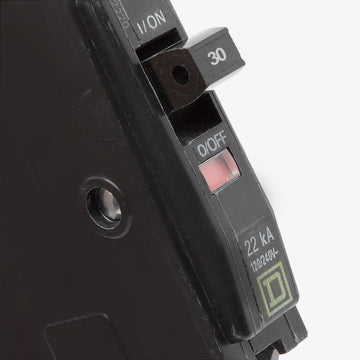

Does the QO130VH include a tripped breaker indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips, a highly visible red indicator appears in a small window to help you quickly identify the faulted circuit.
How much panel space is required to install the QO130VH?
This 1-pole breaker requires a single 3/4-inch space in a compatible QO load center or NQ panelboard.
Is the QO130VH breaker HACR rated?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific classification.
Can the QO130VH be used to replace a standard QO130?
Yes. The QO130VH shares the exact same physical dimensions and plug-on mounting as the standard QO130, but provides a higher 22kAIC interrupting rating. It is a direct, upgraded replacement.
Does this breaker provide arc-fault or ground-fault protection?
No, the QO130VH is a standard thermal-magnetic circuit breaker. It does not include AFCI or GFCI protection circuitry.
