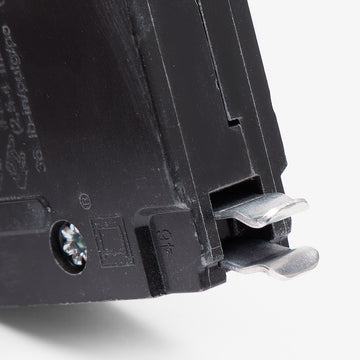

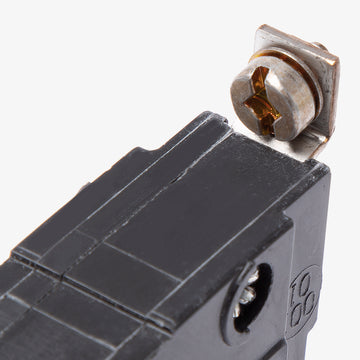

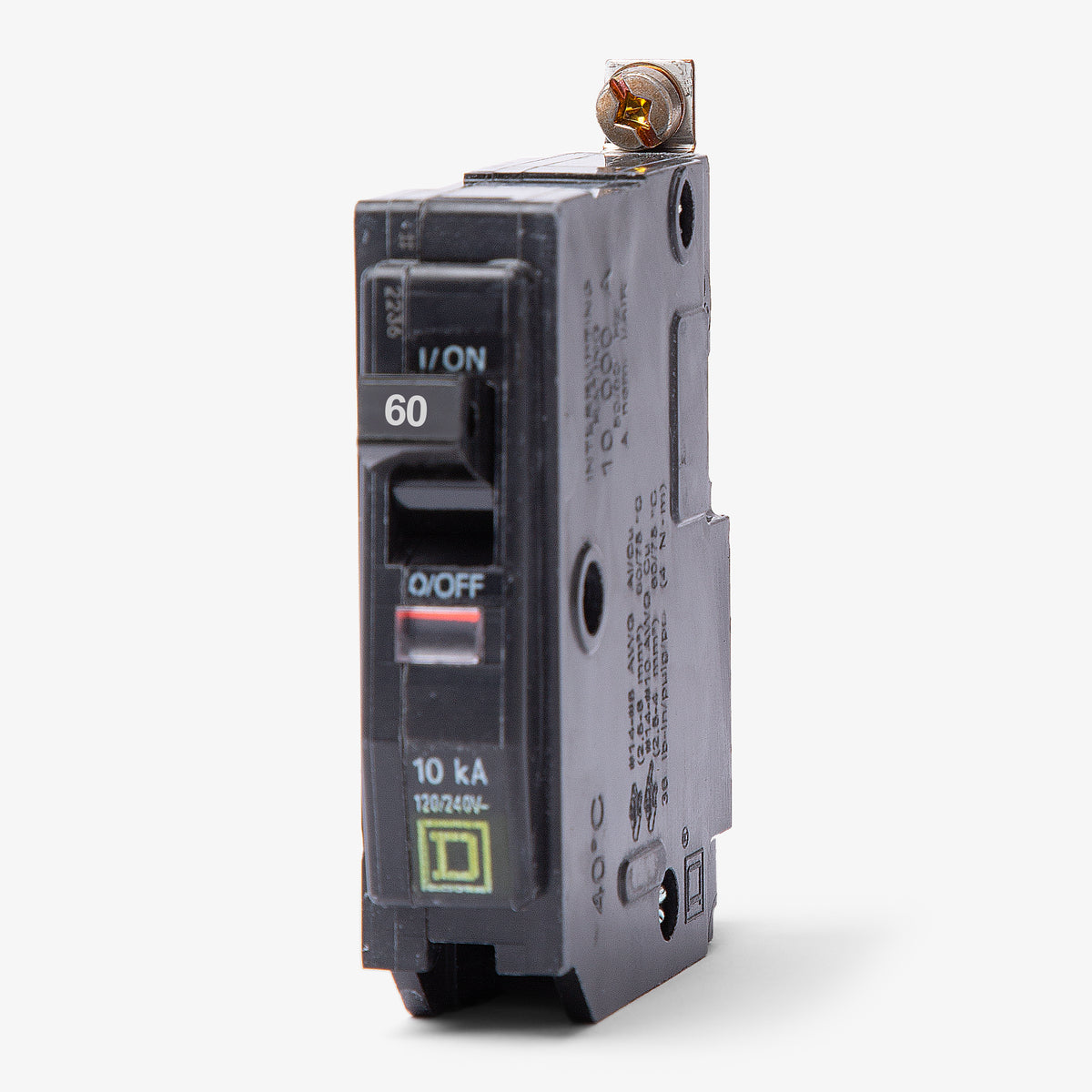

Square D QOB160 Miniature Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
Square D
QOB160
Miniature Circuit Breaker
Brand
Square D
SKU
QOB160
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB160 - 60A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB160 - 60A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB160 |
| Series | QOB |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Sold out
Quantity
Square D QOB160 - 60A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB160-R |
| Series | QOB |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Similar Items
45A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
Description
Designed for commercial and industrial applications, the Square D QOB160 delivers reliable thermal-magnetic protection. This single-pole 60A device features the signature Visi-Trip indicator, allowing maintenance personnel to quickly spot tripped circuits in busy electrical rooms. It installs into standard NQ and legacy NQOD panelboards using a secure bolt-on mounting style. The box lug terminals accept 8-2 AWG aluminum or copper wiring. Rated for 10kAIC at 120/240VAC, it is HACR certified.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB160 |
| Series | QOB |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
7 answersCan I install the QOB160 in a standard Square D QO load center?
No. The QOB160 features a bolt-on connection designed specifically for Square D NQ and legacy NQOD panelboards. Standard QO load centers require plug-on circuit breakers, such as the QO160.
What is the plug-on equivalent to the QOB160?
The Square D QO160 is the direct plug-on equivalent to the bolt-on QOB160. It shares the same 60A rating and thermal-magnetic trip functions but is designed for standard QO load centers.
What wire sizes and types are compatible with the QOB160 terminals?
The box lugs accept 8 AWG to 2 AWG conductors and are dual-rated for both aluminum and copper wire. The manufacturer specified tightening torque for these terminals is 44.3 lb-in (5 N.m).
Is the QOB160 rated for use in DC voltage systems?
Yes. In addition to its AC ratings, this breaker is rated for 48VDC applications with a 5kA interrupting capacity (5kAIC).
Does the QOB160 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker that provides overload and short-circuit protection. It does not include built-in GFCI or AFCI circuitry.
Does this breaker feature a tripped circuit indicator?
Yes, Square D QOB breakers include the Visi-Trip indicator. This provides a clear visual flag on the face of the breaker when it has tripped due to an overcurrent or short-circuit event.
Is the QOB160 HACR rated for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for group motor applications like heating, air conditioning, and refrigeration equipment.
