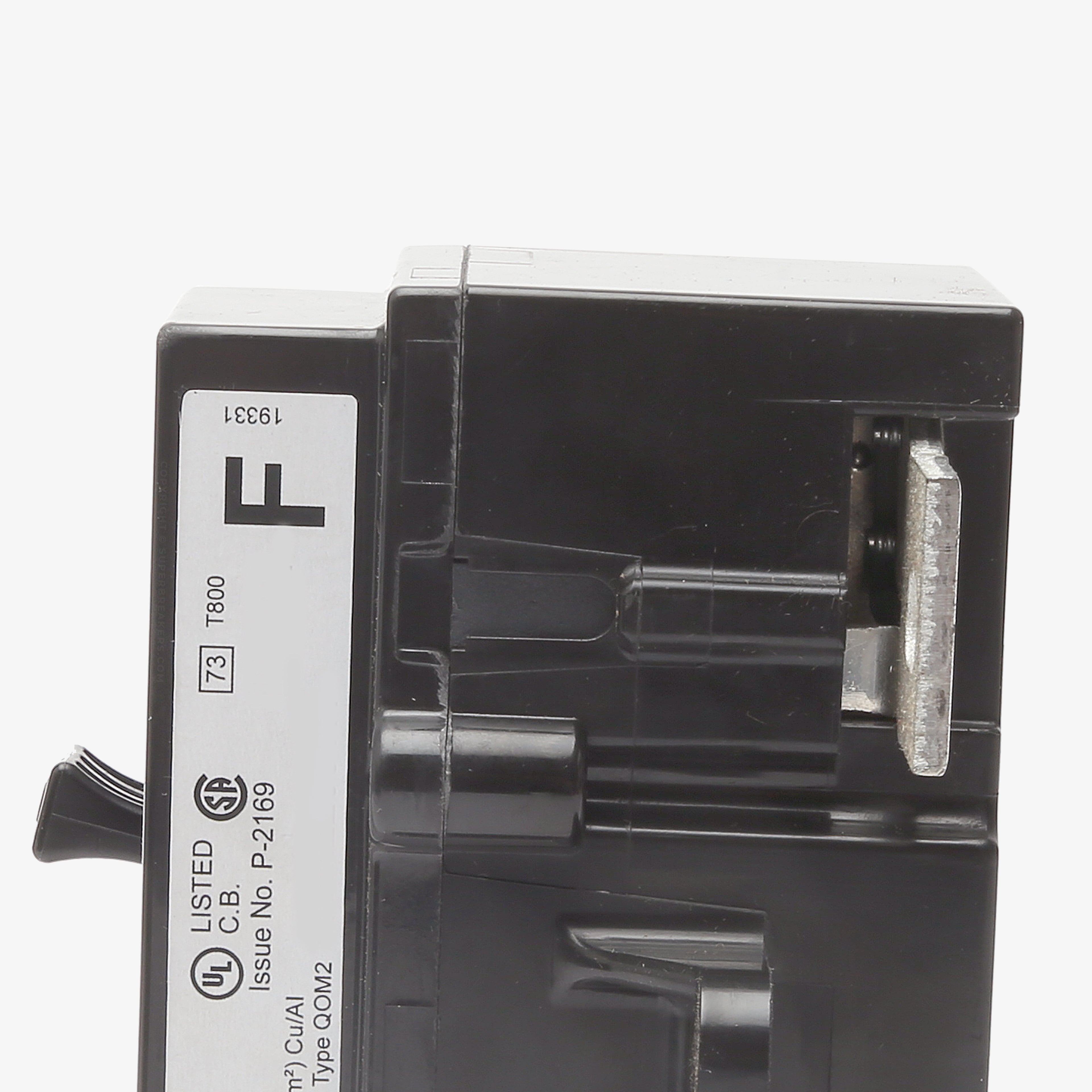

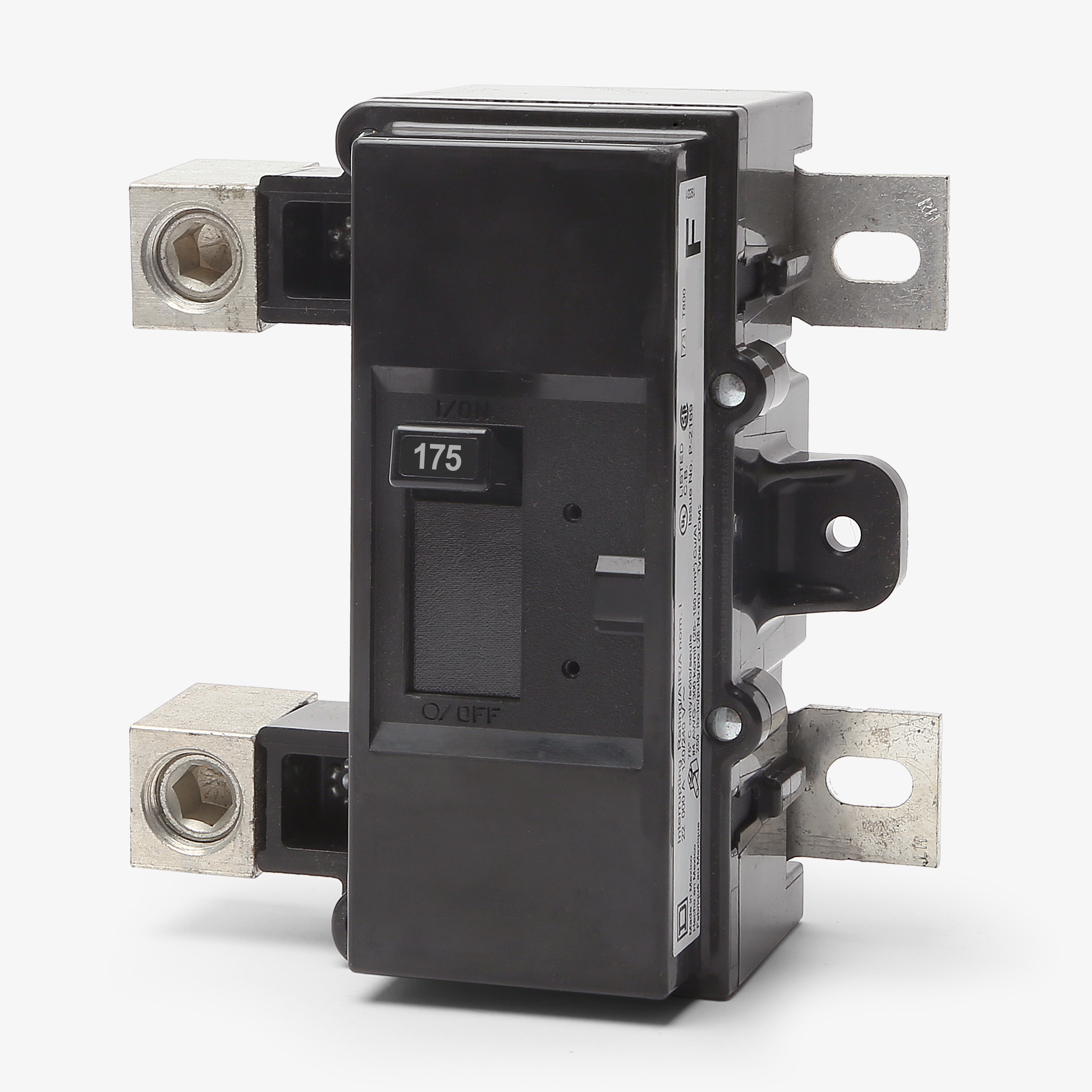

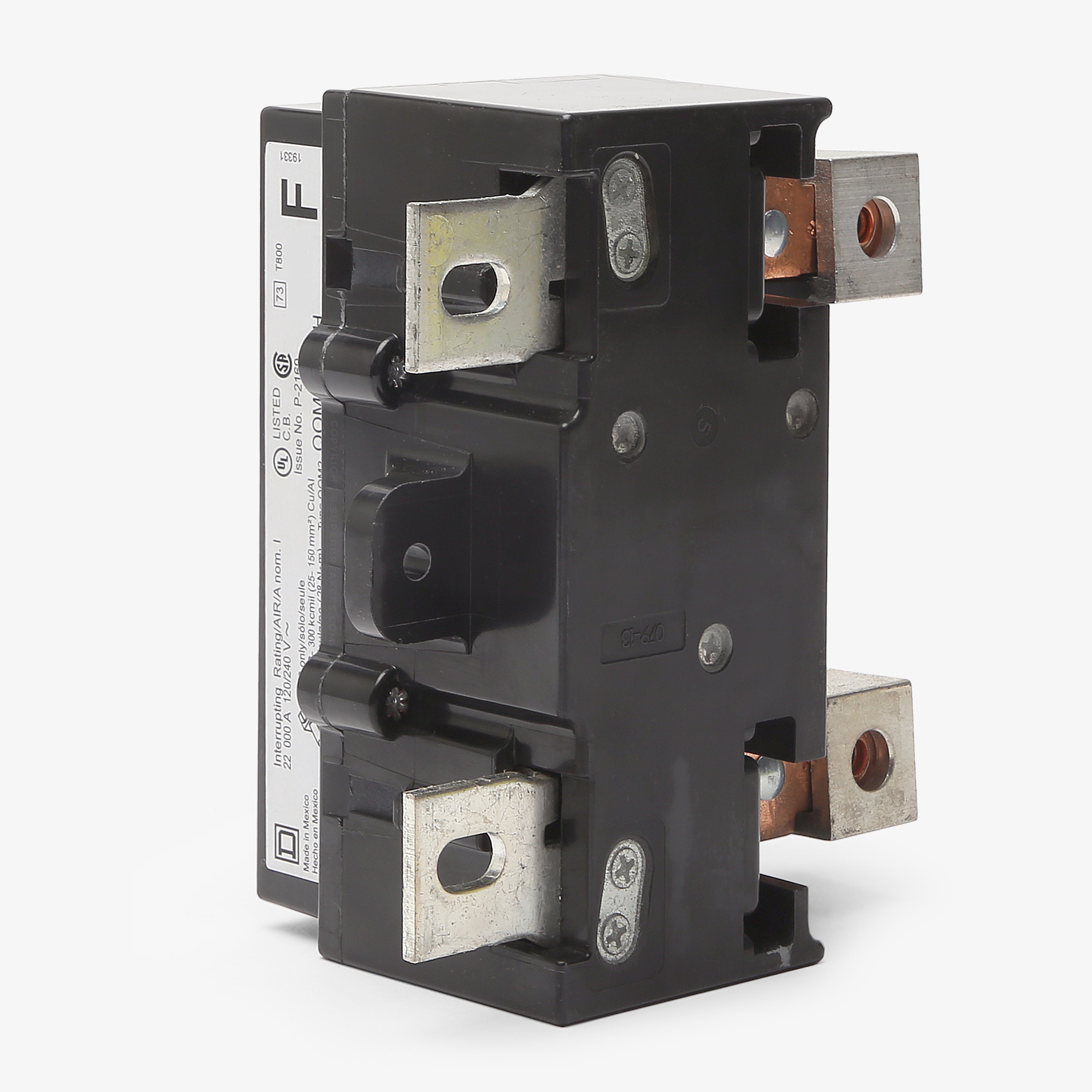

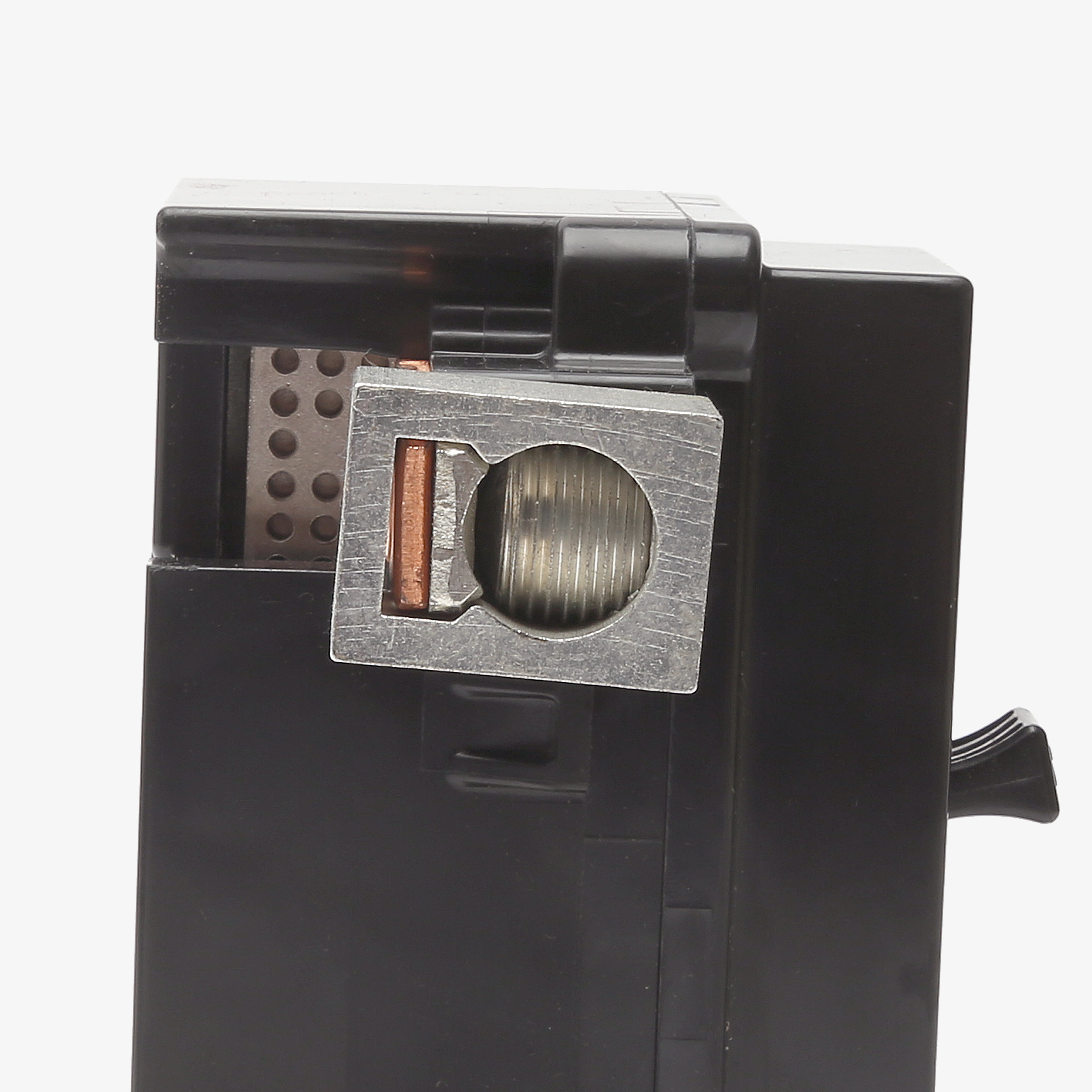

Square D QOM2175VH - 175A 2 Pole Miniature Circuit Breaker

Brand Square D
SKU QOM2175VH
5.0
Rated 5.0 out of 5 stars
7 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D QOM2175VH - 175A 2 Pole Miniature Circuit Breaker

Brand Square D
SKU QOM2175VH
5.0
Rated 5.0 out of 5 stars
7 Reviews
Select Item Condition
Earn 287 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D QOM2175VH - 175A 2 Pole Miniature Circuit Breaker

New

$287.10 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Providing essential overcurrent protection, the Square D QOM2175VH is a 175A main circuit breaker. It serves as a reliable primary disconnect for residential and commercial systems. This bolt-on component is compatible with Square D QO and Homeline load centers. Box lugs accept 4 AWG to 300 kcmil conductors for standard utility feeds. Featuring a 22kAIC rating, the breaker handles high fault currents safely. It incorporates a Visi-Trip indicator to quickly spot a tripped circuit.

Specifications

Brand Square D
Series QOM
Part Number QOM2175VH
Amperage 175A
Voltage 120/240VAC
Poles 2
Phase 1
AIC Rating 22kA @ 120/240VAC
Mounting Style Bolt-On
Terminal Type Box Lugs
For Use With QO Load Centers, Homeline Load Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 4 AWG - 300 kcmil (Al/Cu)
Max Wire 300 kcmil
Min Wire 4 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch
Accessories Lugs Included
Standards CSA C22.2 No. 5, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Visual Trip Indicator, HACR Rated, Main Breaker, High Interrupting Capacity
