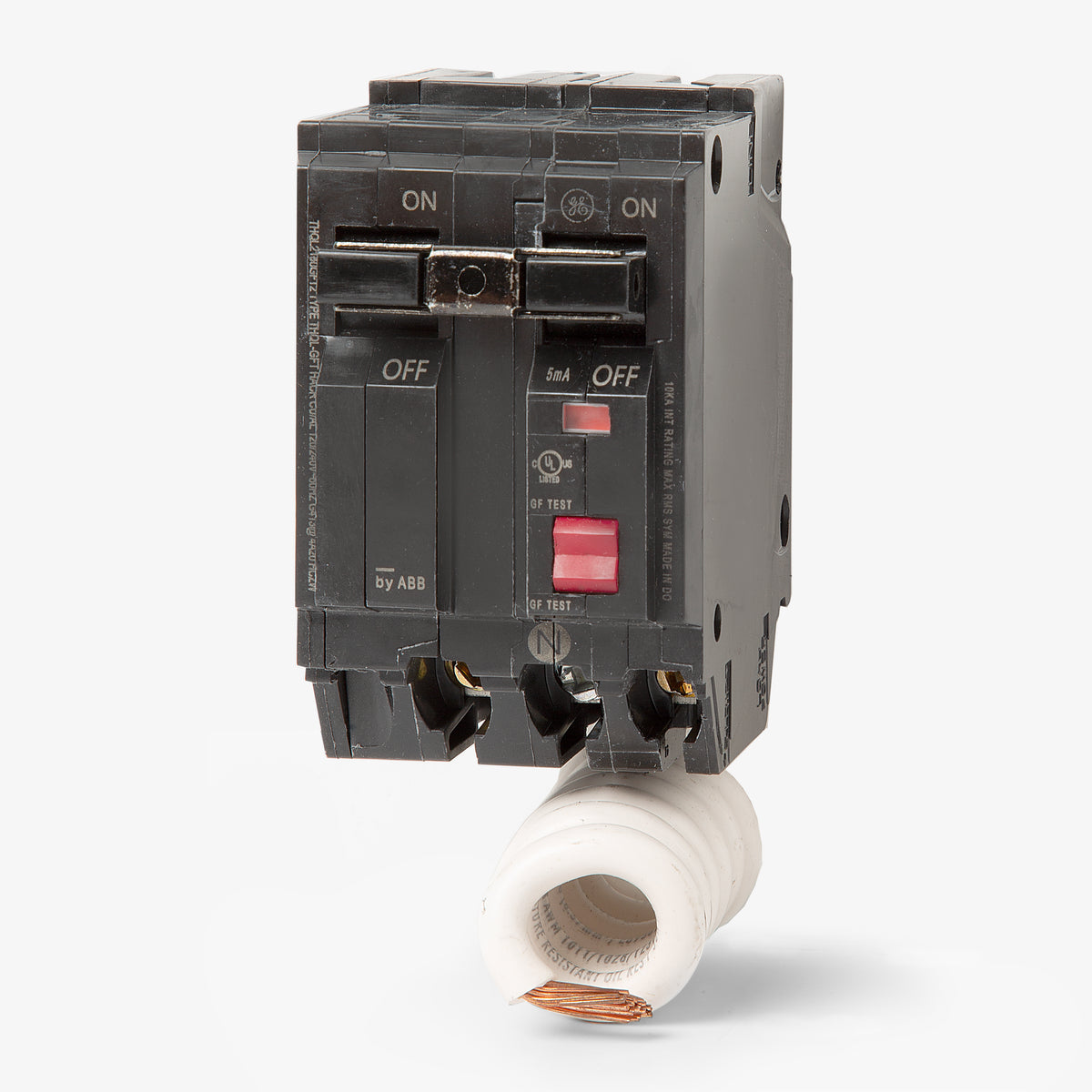

ABB / General Electric THQL2140GFT GFCI Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2140GFT
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2140GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2140GFT - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2140GFT2
40A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2140GF
40A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2145GFT2
45A GFCI Miniature Circuit Breaker
Description
Delivering essential Class A 5mA ground fault protection, this 40-amp breaker ensures compliance with NEC requirements for wet or damp locations. It features internal common trip mechanisms and self-test capabilities to verify ongoing safety functionality. Designed to mount into GE PowerMark Gold and ABB ReliaHome load centers, this two-pole unit replaces older THQL2140GF models. The plug-on design simplifies installation for residential and commercial applications requiring 10kAIC ratings.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2140GFT |
| Series | THQL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Self-Test Feature |
| Standards | UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Self-Test, HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich load centers accept the THQL2140GFT circuit breaker?
This plug-on breaker is designed specifically for installation in GE PowerMark Gold and ABB ReliaHome load centers.
Does the THQL2140GFT replace older GE GFCI breakers?
Yes, the THQL2140GFT is the direct replacement for the legacy THQL2140GF model. The T suffix indicates the addition of an automatic self-test feature to meet updated UL standards.
What is the ground fault trip threshold for this device?
This breaker provides Class A ground fault protection, meaning it is calibrated to trip when it detects a ground fault current of 5 mA.
How does the self-test function operate on this GFCI breaker?
The breaker performs periodic, automatic internal tests to verify that the ground fault circuitry is functioning properly. If the internal diagnostic fails, the breaker will trip and prevent power delivery, indicating the unit must be replaced.
How is the neutral connection established during installation?

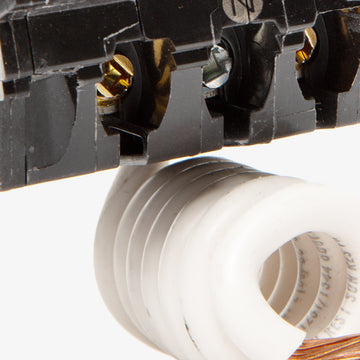

The breaker is equipped with a pigtail neutral wire that must be routed and secured to the neutral bus bar in the panelboard to enable the ground fault sensing circuitry.
Does this breaker meet NEC requirements for wet or damp locations?
Yes. Because it provides Class A 5 mA ground fault protection, it satisfies National Electrical Code (NEC) requirements for 40-amp circuits supplying equipment in wet or damp locations.
